Description
General part information

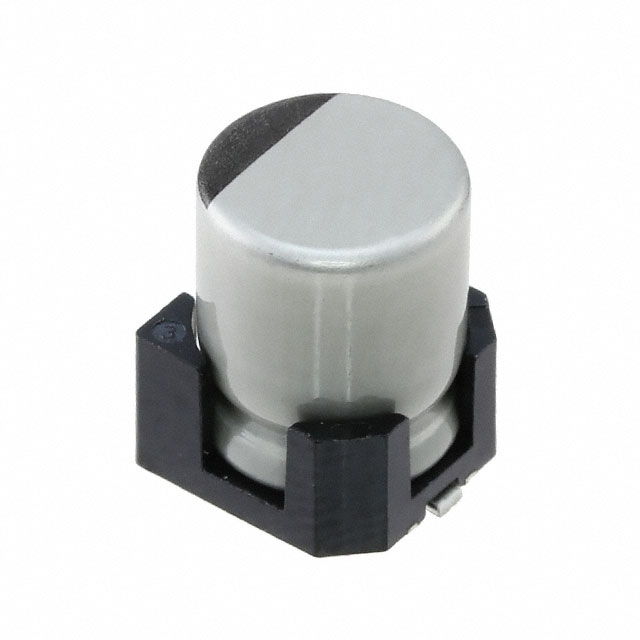

UUE1C101MNS1GS
100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UUE1C101MNS1GS |
|---|---|
| Applications | Automotive |
| Capacitance | 100 µF |
| Height - Seated (Max) | 0.433 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 93.8 mA, 140 mA |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.327 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
