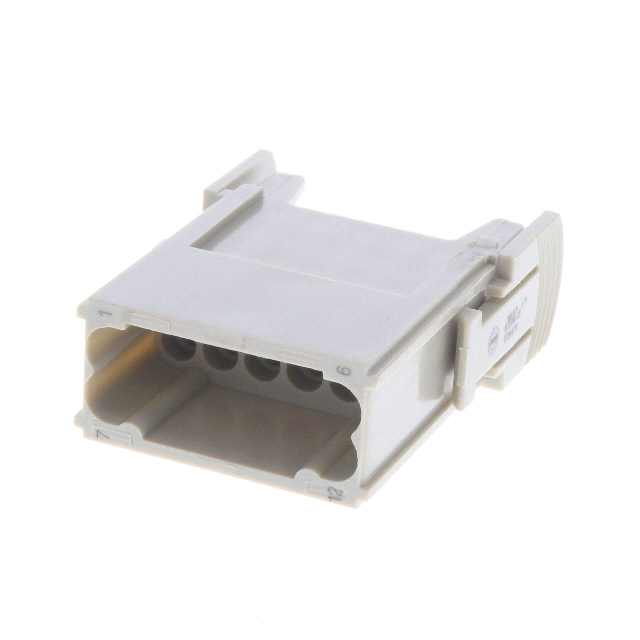

Specification	T2111122101-000

Connector Type	Module without Contacts
Contact Type	CDM, DDM
Current Rating	10 A
Gender	Male
Housing Material	PC, Polycarbonate
Material Flammability Rating	UL94 V-0
Number of Positions	12
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Termination Style	Crimp
Voltage Rating	250 V

HDC HMN Series

Heavy Duty Power Connectors H32A-SGR-2PG21

...

Part	Connector Type	Style	Housing Material	Operating Temperature (Max)	Operating Temperature (Min)	Color	Voltage Rating	Termination Style	Current Rating	Gender	Number of Positions	Pin or Socket	Type	Material Flammability Rating	Contact Type	Wire Gauge	Contact Finish	Contact Termination
TE Connectivity AMP Connectors T2111027101-000	Module	Bottom Entry	PC Polycarbonate	125 °C	-40 °C
TE Connectivity AMP Connectors T2113000101-107	Module RJ45		PC Polycarbonate	70 °C	-40 °C	Gray	50 V	Crimp	1 A	Male	8
TE Connectivity AMP Connectors T2090012201-004												Socket	Pneumatic
TE Connectivity AMP Connectors T2111082201-100	Module without Contacts		PC Polycarbonate	125 °C	-40 °C		400 V	Crimp	16 A	Female	8			UL94 V-0	CEF DEF
TE Connectivity AMP Connectors T2111042101-000	Module without Contacts		PC Polycarbonate	125 °C	-40 °C		830 V	Crimp	40 A	Male	4			UL94 V-0	CMM DMM
TE Connectivity AMP Connectors T2111032201-000	Module without Contacts		PC Polycarbonate	125 °C	-40 °C		690 V	Crimp	40 A	Female	3			UL94 V-0	CMF DMF
TE Connectivity AMP Connectors T2114000201-007	Module USB		PC Polycarbonate	70 °C	-40 °C	Gray	50 V	Crimp	1 A	Female	4
TE Connectivity AMP Connectors T2090012201-001												Socket	Pneumatic
TE Connectivity AMP Connectors T2111322201-000	Module without Contacts		PBT Polybutylene Terephthalate	125 °C	-40 °C	Gray	32 V	Crimp	2.2 A	Female	32			UL94 V-0
TE Connectivity AMP Connectors T2192501050-000												Pin				1/0 AWG	Silver	Crimp
