1419234
ActivePhoenix Contact

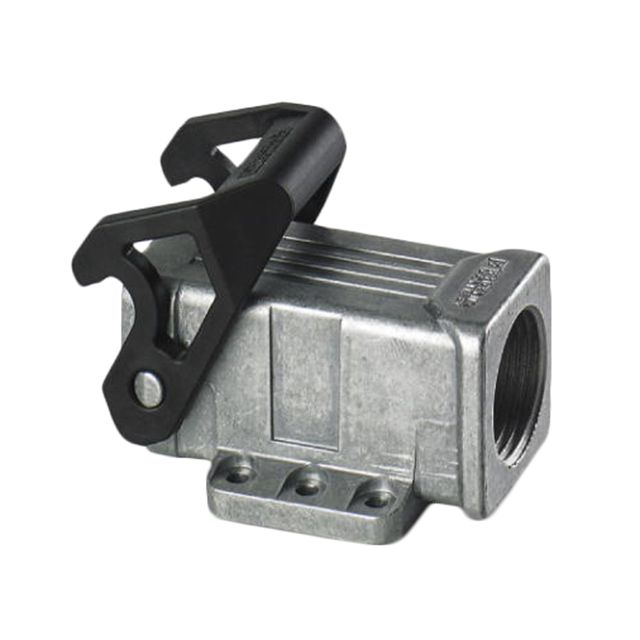

CONN BASE SIDE ENTRY SZD7 M20
1419234
ActivePhoenix Contact
CONN BASE SIDE ENTRY SZD7 M20
Description
General part information
1419234
Base - Panel Mount 90° Connector Side Entry M20 D7 IP66/IP67 - Dust Tight, Water Resistant, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 1419234 |
|---|---|
| Connector Angle | 90 |
| Connector Type | Base - Panel Mount, Base - Panel Mount 90° |
| Features | Salt Water Resistant |
| Housing Color | Gray |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | D7 |
| Style | Side Entry |
| Thread Size | M20 |
