CWU4810

Active

Sensata-Crydom

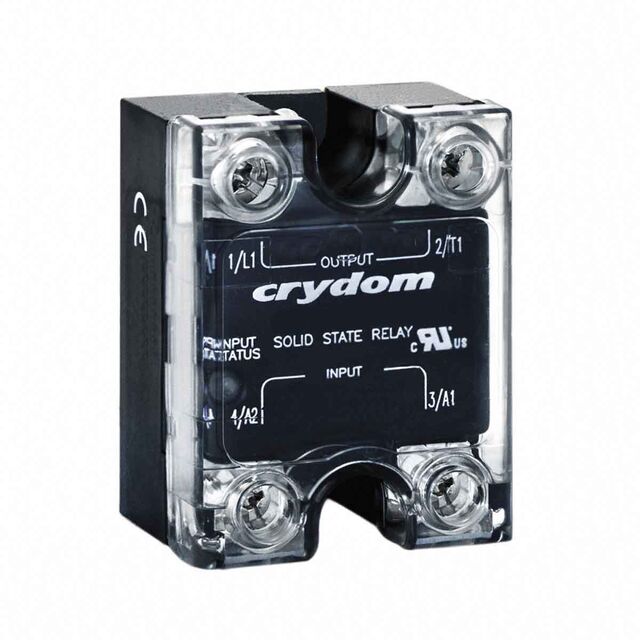

SSR RELAY SPST-NO 10A 48-660V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCMX Series Datasheet CE Declaration of Conformity

CWU4810

Active

Sensata-Crydom

SSR RELAY SPST-NO 10A 48-660V

Deep-Dive with AI

DocumentsCMX Series Datasheet CE Declaration of Conformity

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 75.81

Description

General part information

- Series

Solid State SPST-NO (1 Form A) Hockey Puck

Documents

Technical documentation and resources

CMX Series Datasheet

Datasheet

CE Declaration of Conformity

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CWU4810	- Series

Approval Agency	CSA, TUV, cURus, CE	CSA, TUV, cURus, CE, CE, cURus, cULus, IEC, UL, VDE
Load Current	10 A	1.5 - 125 A
Mounting Type	Chassis Mount	Chassis Mount, DIN Rail, Socketable, Through Hole
On-State Resistance (Max)	-	8 - 550 mOhms
Operating Temperature [Max]	80 C	40 - 100 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Output Type	AC, Zero Cross	AC, Zero Cross, DC
Package / Case	Hockey Puck	Hockey Puck, Module, 6-SIP, 4-SIP
Supplier Device Package	-	6-SIP, 4-SIP, 4-Mini SIP
Termination Style	Screw Terminal	Screw Terminal, Plug In, Quick Connect - 0.187" (4.7mm), Quick Connect - 0.187" (4.7mm), PC Pin
Voltage - Input [Max]	280 VAC/DC, 48 V	8 - 280 V
Voltage - Input [Min]	20 VAC/DC, 20 VDC	3 - 90 V
Voltage - Load [Max]	660 V	60 - 660 V
Voltage - Load [Min]	48 V	0 - 80 V

- Series

SSR RELAY SPST-NO 40A 80-530V

...

Part	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Output Type	Mounting Type	Load Current	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	On-State Resistance (Max) [Max]
Sensata-Crydom D4840	CE, CSA, cURus, TUV	80 V	530 V	Screw Terminal	AC, Zero Cross	Chassis Mount	40 A	100 °C	-40 °C	32 V	3 V	Hockey Puck
Sensata-Crydom HD6090	CE, CSA, cURus, TUV	48 V	660 V	Screw Terminal	AC, Zero Cross	Chassis Mount	90 A	80 C	-40 °C	32 V	3 V	Hockey Puck
Sensata-Crydom D2D40	CE, cURus	1 V	200 V	Screw Terminal	DC	Chassis Mount	40 A	100 °C	-40 °C	32 V	3.5 V	Hockey Puck	50 mOhms
Sensata-Crydom CWU2450	CE, CSA, cURus, TUV	24 V	280 V	Screw Terminal	AC, Zero Cross	Chassis Mount	50 A	80 C	-40 °C	48 V, 280 VAC/DC	20 VAC/DC, 20 VDC	Hockey Puck
Sensata-Crydom DR10D24	CE, cULus	1 V	100 V	Screw Terminal	DC	DIN Rail	24 A	40 °C	-20 C	32 V	4 V	Module	26 mOhms
Sensata-Crydom HD4875	CE, CSA, cURus, TUV			Screw Terminal	AC, Zero Cross	Chassis Mount	75 A	80 C	-40 °C	32 V	3 V	Hockey Puck
Sensata-Crydom ED24B5	CE, cURus, IEC	24 V	280 V	Plug In, Quick Connect - 0.187" (4.7mm)	AC, Zero Cross	Socketable	5 A	80 C	-30 ░C	140 VAC	90 VAC	Module
Sensata-Crydom S218	CE, CSA, UL	20 V	140 V	Quick Connect - 0.187" (4.7mm)	AC, Zero Cross	Chassis Mount	8 A	80 C	-30 ░C	8 VDC	3.5 V	Module
Sensata-Crydom CWA4890	CE, CSA, cURus, TUV	48 V	660 V	Screw Terminal	AC, Zero Cross	Chassis Mount	90 A	80 C	-40 °C	280 VAC/DC	90 VAC	Hockey Puck
Sensata-Crydom S228C	CE, CSA, UL	40 V	280 V	Quick Connect - 0.187" (4.7mm)	AC, Zero Cross	Chassis Mount	8 A	80 C	-30 ░C	8 VDC	3.5 V	Module
