Description
General part information

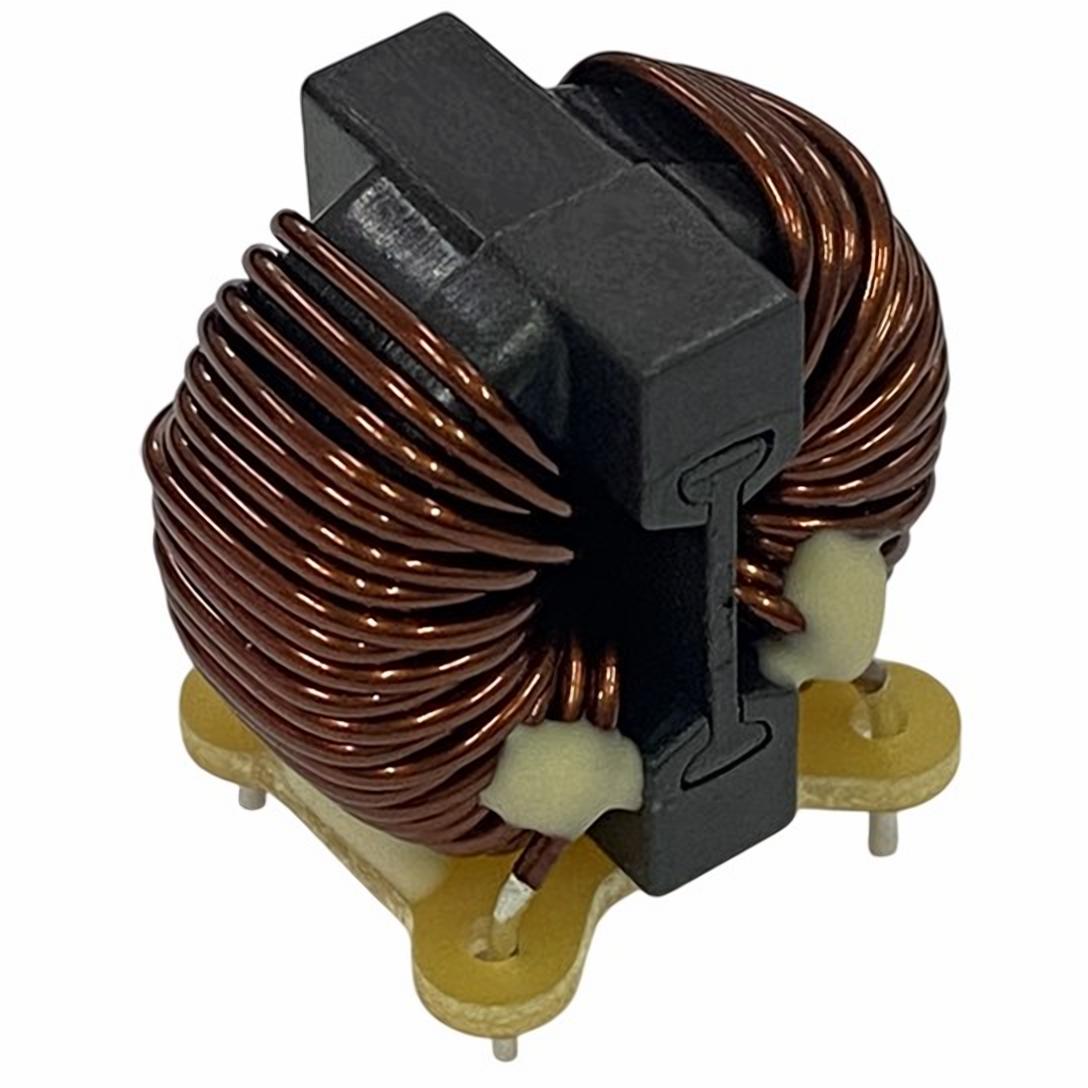

SCT17X-100-1R1A015JV
IND COMMON MODE 0.3MH 10A
Technical Specifications
Parameters and characteristics for this part
| Specification | SCT17X-100-1R1A015JV |
|---|---|
| Current Rating (Max) | 10 A |
| DC Resistance (DCR) (Max) | 11.34 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.925 in |
| Inductance | 300 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.004 in |
| Size / Dimension Width | 0.717 in |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
