5550H-05-240MMX240MM-5PK
Active3M Electronic Specialty
THERM PAD 240X240MM GRY/WHT 5PK
5550H-05-240MMX240MM-5PK
Active3M Electronic Specialty
THERM PAD 240X240MM GRY/WHT 5PK
Description
General part information
5550H-05-240MMX240MM-5PK

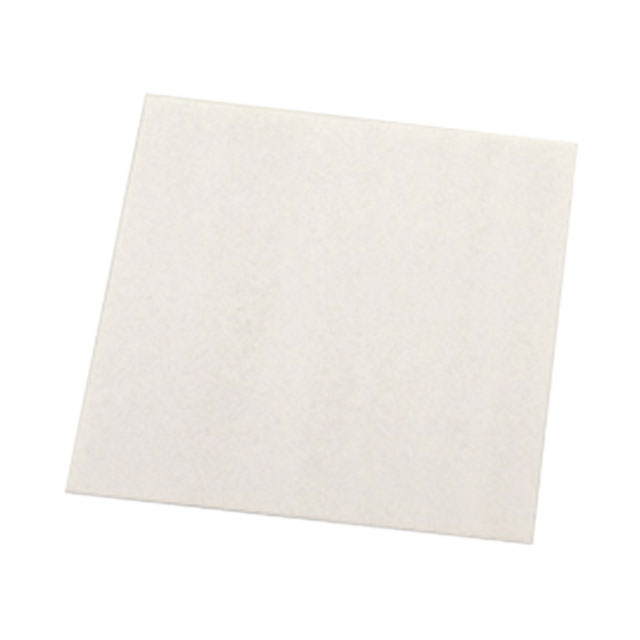

Thermal Pad Gray, White 240.00mm x 240.00mm Square Tacky - Both Sides
Technical Specifications
Parameters and characteristics for this part
| Specification | 5550H-05-240MMX240MM-5PK |
|---|---|
| Adhesive | Tacky - Both Sides |
| Backing, Carrier | Polyethylene-Terephthalate, PET |
| Color | Gray, White |
| Material | Acrylic Elastomer |
| Outline Length | 240 mm |
| Outline Width | 240 mm |
| Shape | Square |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature | 70 °F |
| Thermal Conductivity | 3 W/m-K |
| Thickness | 0.0197 in |
| Type | Sheet, Interface Pad |
| Usage | Thermally Conductive |
