Specification	B65859A0000R045

Core Factor (ΣI/A) mm⁻¹	1.37 mm⁻¹

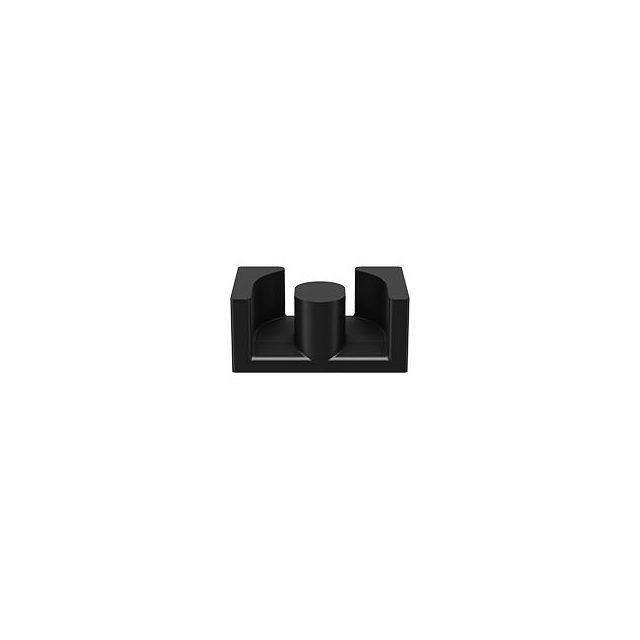

Core Type	EPX
Effective Area (Ae)	15.9 mm²
Effective Length (le)	21.7 mm
Effective Magnetic Volume (Ve)	345 mm³
Effective Permeability (µe)	2060
Finish	Uncoated
Gap	Ungapped
Height	0.205 in
Inductance Factor (Al)	1.9 µH
Initial Permeability (µi)	3800
Length	0.465 in
Material	N45
Minimum Core Cross Section (Amin) (mm²)	13.2 mm²
Package Name	EPX 10
Tolerance (Negative)	20 %
Tolerance (Positive)	30 %
Width	0.309 in
