MJ-2506N
ActiveSame Sky (Formerly CUI Devices)

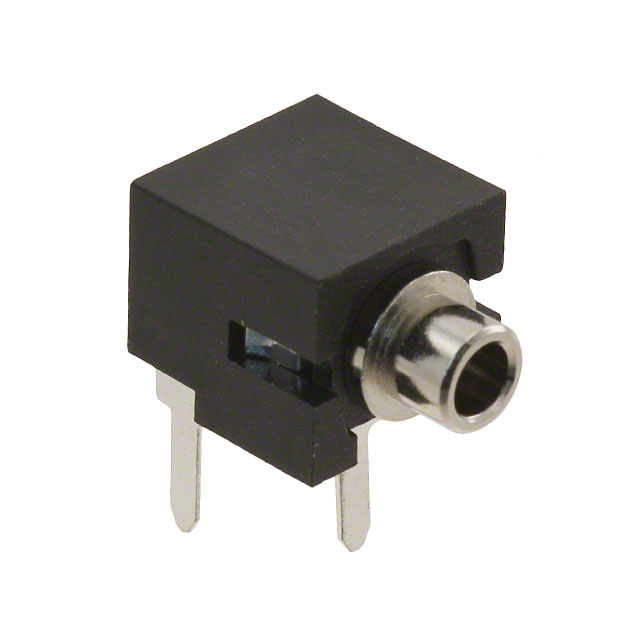

CONN JACK MONO 2.5MM R/A
MJ-2506N
ActiveSame Sky (Formerly CUI Devices)
CONN JACK MONO 2.5MM R/A
Description
General part information
MJ-2506N
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MJ-2506N |
|---|---|
| Actual Diameter | 0.102 in |
| Body Color | Black, Silver |
| Body Material | Brass |
| Connector Type | Phone Jack |
| Contact Material | Brass, Copper Alloy |
| Contact Material - Plating | Tin |
| Current Rating | 1 A |
| Gender | Female |
| Housing Material | PBT, Polybutylene Terephthalate |
| Industry Recognized Mating Diameter (Headphone - Miniature) | 2.5 mm |
| Industry Recognized Mating Diameter (Headphone - Sub Mini) | 2.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Miniature, Sub Mini |
| Internal Switch(s) | Single Switch |
| Mounting Type | Through Hole, Right Angle |
| Number of Conductors | 2 |
| Number of Contacts | 3 |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
| Voltage - Rated | 12 VAC |
