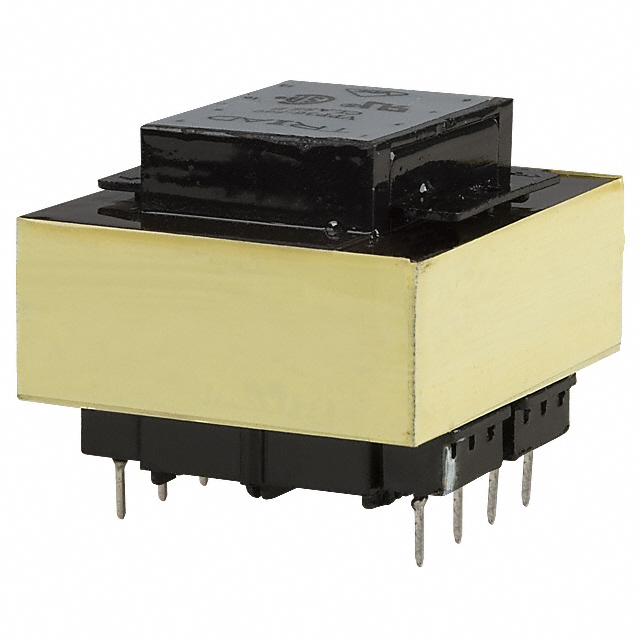

VPP16-1250-B
PWR XFMR LAMINATED 20VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | VPP16-1250-B |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 2.5 A |
| Current - Output (Max) Series | 1.25 A |
| Height - Seated (Max) | 41.28 mm |
| Mounting Type | Through Hole |
| Power - Max | 20 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 2.25 in |
| Size / Dimension Width | 47.63 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 8 V |
| Voltage - Secondary (Full Load) (Series) | 16 V |
| Weight | 0.9 lb |
