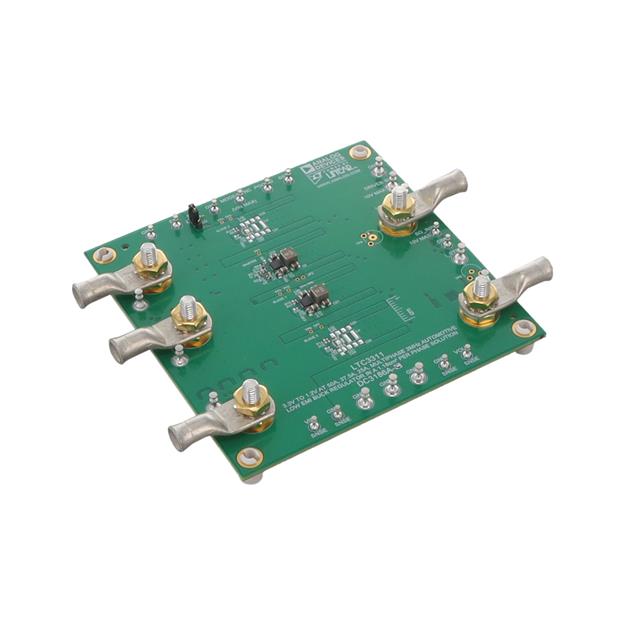

DC3186A-C
ActiveAnalog Devices Inc./Maxim Integrated
3.3V-1.2V 25A 2PH 2MHZ AUTO BUCK
DC3186A-C
ActiveAnalog Devices Inc./Maxim Integrated
3.3V-1.2V 25A 2PH 2MHZ AUTO BUCK
Description
General part information
DC3186A-C
LTC3311 Silent Switcher® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | DC3186A-C |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 25 A |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | LTC3311 |
| Voltage - Input (Maximum) | 5.5 V |
| Voltage - Input (Minimum) | 3 V |
| Voltage - Output (Max) | 1.224 V |
| Voltage - Output (Min) | 1.176 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
