LC1D80AE7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK CTR 80A 37KW AC3 4
LC1D80AE7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK CTR 80A 37KW AC3 4
Description
General part information

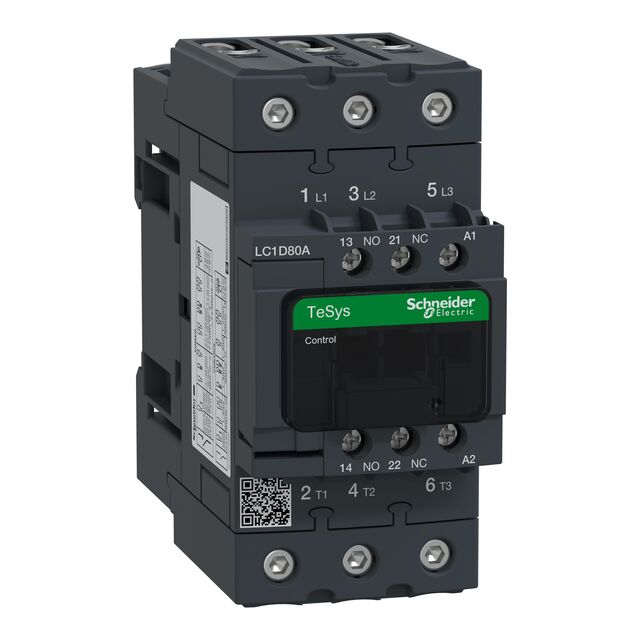

LC1D80AE7
TESYS 3P EVLK CTR 80A 37KW AC3 4
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D80AE7 |
|---|---|
| Coil Voltage | 48 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 80 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 38.4 V |
| Must Release Voltage | 14.4 VDC |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
