Description
General part information
09-0A72.3132

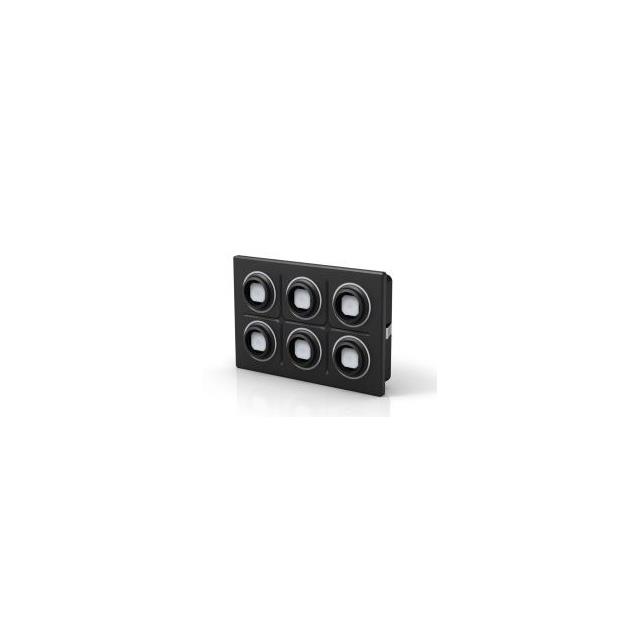

Keypad Switch 6 Keys Snap Dome Contacts Matrix Output Illuminated - White 0.03A @ 32VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 09-0A72.3132 |
|---|---|
| Color | Black |
| Contact Rating (Current) | 0.03 A |
| Illumination | White |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Legend Color | White |
| Legend Type | Fixed |
| Matrix Columns | 3 |
| Matrix Rows | 2 |
| Mounting Type | Front, Panel Mount |
| Number of Keys | 6 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Operational Life | 250000 Cycles |
| Output Type | Matrix |
| Panel Cutout Length | 107.1 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 68.8 mm |
| Switch Type | Snap Dome |
| Termination Style | Cable with Connector |
