Description
General part information

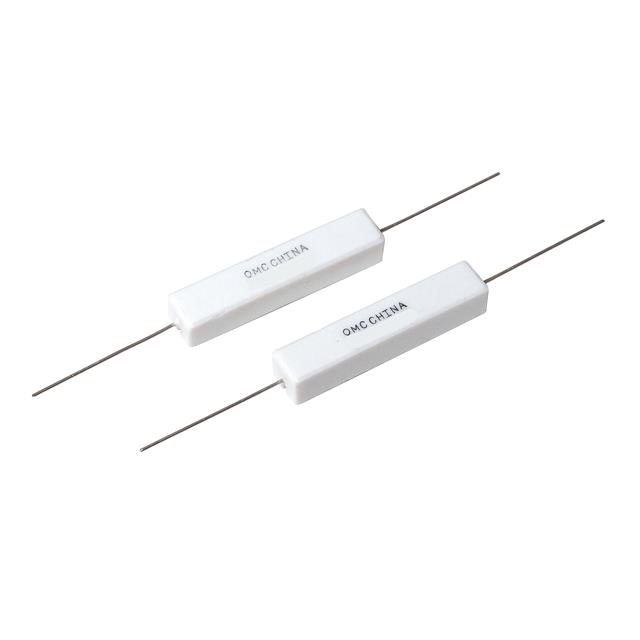

TUM5J1K5E
1.5 kOhms ±5% 5W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | TUM5J1K5E |
|---|---|
| Composition | Metal Oxide Film |
| Features | Safety, Flame Proof |
| Height - Seated (Max) | 0.394 in |
| Number of Terminations | 2 |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 5 W |
| Resistance | 1.5 kOhms |
| Size / Dimension Height | 0.354 in, 0.866 in |
| Size / Dimension Length | 0.866 in, 0.394 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.394 in, 0.354 in |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 5 % |
