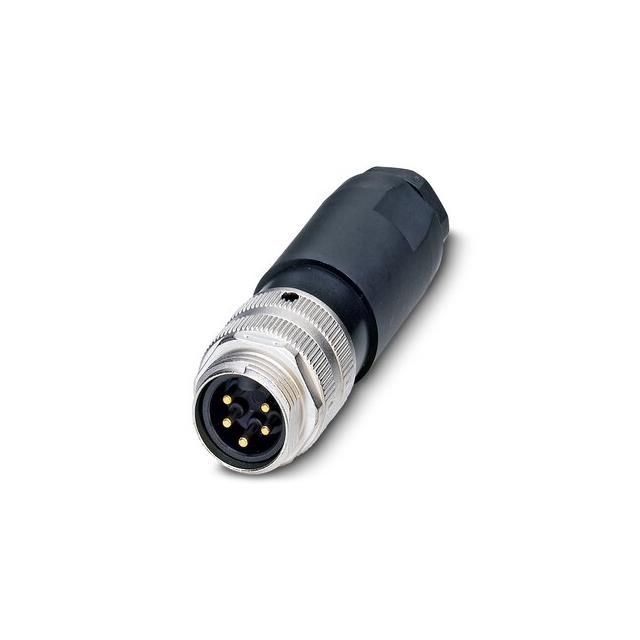

Specification	1559039

Backshell Material, Plating	Polybutylene Terephthalate (PBT)
Cable Opening (Max)	0.551 in
Cable Opening (Min)	0.472 in
Color	Black, Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	9 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA66, Polyurethane, PUR, Nylon 6/6, Polyamide
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	7/8"-5
Shell Size - Insert (Maximum)	5 in
Shell Size - Insert (Minimum)	0.875 in
Termination	Screw
Voltage Rating	300 VAC/DC
