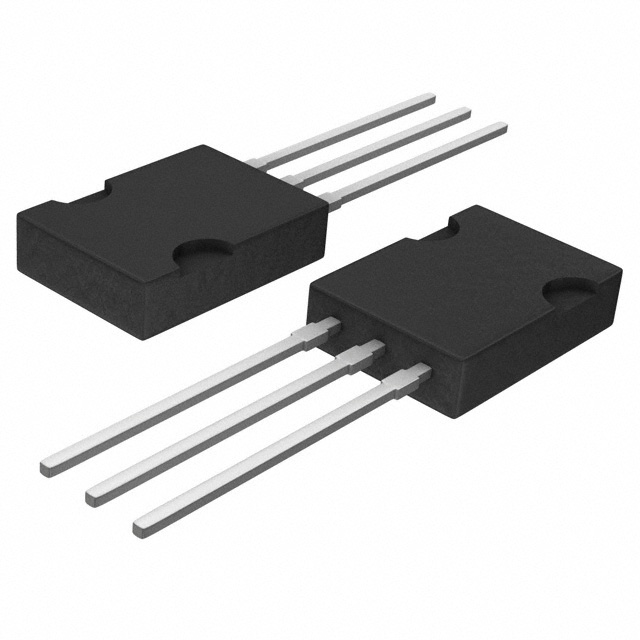

BT134-800,127

Active

WeEn Semiconductors

TRIAC 800V 4A SOT82-3

Deep-Dive with AI

Search across all available documentation for this part.

BT134-800,127

Active

WeEn Semiconductors

TRIAC 800V 4A SOT82-3

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10000	$ 0.22

Description

General part information

BT134 Series

TRIAC Standard 800 V 4 A Through Hole SOT-82-3

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BT134-800,127	BT134 Series

Configuration	Single	Single
Current - Gate Trigger (Igt) (Max) [Max]	35 mA	5 - 50 mA
Current - Hold (Ih) (Max) [Max]	15 mA	8 - 30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	27 A, 25 A	10 - 27.5 A
Current - On State (It (RMS)) (Max) [Max]	4 A	2 - 4 A
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature	125 ¯C	125 ¯C
Operating Temperature	-	-40 °C
Operating Temperature	-	125 ¯C
Package / Case	SOT-82	SOT-82, TO-261AA, TO-261-4
Supplier Device Package	SOT-82-3	SOT-82-3, SC-73
Triac Type	Standard	Standard, Logic - Sensitive Gate, Alternistor - Snubberless
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V	1 - 1.5 V
Voltage - Off State	800 V	600 - 800 V

BT134 Series

TRIAC 600V 4A SOT82-3

Part	Supplier Device Package	Triac Type	Mounting Type	Current - Hold (Ih) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Package / Case	Current - On State (It (RMS)) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Configuration	Operating Temperature	Voltage - Off State
WeEn Semiconductors BT134-600G,127	SOT-82-3	Standard	Through Hole	30 mA	25 A, 27 A	1.5 V	SOT-82	4 A	50 mA	Single	125 ¯C	600 V
WeEn Semiconductors BT134W-600D,115	SC-73	Logic - Sensitive Gate	Surface Mount	10 mA	10 A, 11 A	1.5 V	TO-261-4, TO-261AA		5 mA	Single	125 ¯C	600 V
WeEn Semiconductors BT134-800E,127	SOT-82-3	Logic - Sensitive Gate	Through Hole	15 mA	25 A, 27 A	1.5 V	SOT-82	4 A	10 mA	Single	125 ¯C	800 V
WeEn Semiconductors BT134W-600,135	SC-73	Standard	Surface Mount	15 mA	10 A, 11 A	1.5 V	TO-261-4, TO-261AA		35 mA	Single	125 ¯C	600 V
WeEn Semiconductors BT134-600,127	SOT-82-3	Standard	Through Hole	15 mA	25 A, 27 A	1.5 V	SOT-82	4 A	35 mA	Single	125 ¯C	600 V
WeEn Semiconductors BT134W-800,115	SC-73	Standard	Surface Mount	15 mA	10 A, 11 A	1.5 V	TO-261-4, TO-261AA		35 mA	Single	125 ¯C	800 V
WeEn Semiconductors BT134W-600E,115	SC-73	Logic - Sensitive Gate	Surface Mount	15 mA	10 A, 11 A	1.5 V	TO-261-4, TO-261AA		10 mA	Single	125 ¯C	600 V
WeEn Semiconductors BT134-600E,127	SOT-82-3	Logic - Sensitive Gate	Through Hole	15 mA	25 A, 27 A	1.5 V	SOT-82	4 A	10 mA	Single	125 ¯C	600 V
WeEn Semiconductors BT134-600D,127	SOT-82-3	Logic - Sensitive Gate	Through Hole	10 mA	25 A, 27 A	1.5 V	SOT-82	4 A	5 mA	Single	125 ¯C	600 V
WeEn Semiconductors BT134W-600,115	SC-73	Standard	Surface Mount	15 mA	10 A, 11 A	1.5 V	TO-261-4, TO-261AA		35 mA	Single	125 ¯C	600 V
