392-112-521-212

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

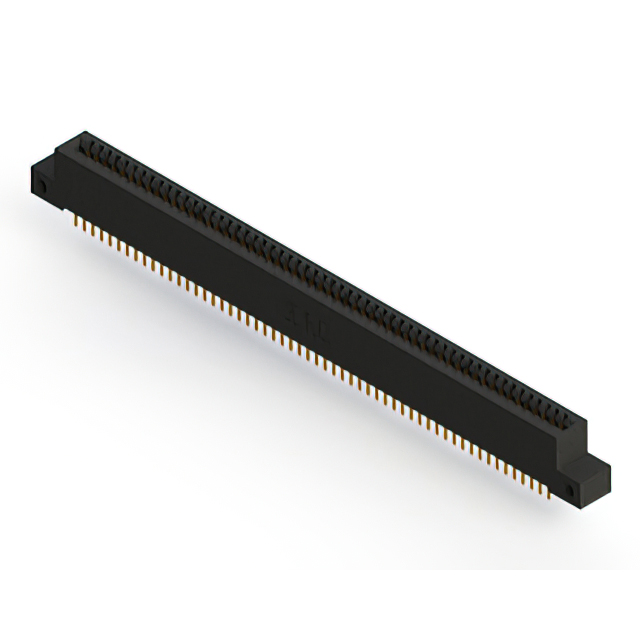

392-112-521-212

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	392-112-521-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	112
Number of Positions/Bay/Row [custom]	56
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

392-112 Series

Part	Contact Type	Number of Positions	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Mounting Type	Termination Rows	Termination	Gender	Number of Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Pitch [x]	Pitch [x]	Contact Material	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 392-112-540-204	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Through Hole	2	Wire Wrap	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	2.54 mm	0.1 in	Copper Alloy	56
EDAC Inc. 392-112-523-201	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Through Hole	2	Solder	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge				2.54 mm	0.1 in	Copper Alloy	56
EDAC Inc. 392-112-540-207	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Through Hole	2	Wire Wrap	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge		Flush Mount M3 Threaded Insert Top Opening		2.54 mm	0.1 in	Copper Alloy	56
EDAC Inc. 392-112-555-212	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Board Edge Straddle Mount	2	Solder Eyelet(s)	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2.54 mm	0.1 in	Copper Alloy	56	Card Extender
EDAC Inc. 392-112-542-203	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Through Hole	2	Wire Wrap	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge	2.95 mm	Floating Bobbin Flush Mount	0.116 in	2.54 mm	0.1 in	Copper Alloy	56
EDAC Inc. 392-112-559-202	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Through Hole Right Angle	2	Solder Wire Wrap	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	2.54 mm	0.1 in	Copper Alloy	56
EDAC Inc. 392-112-524-212	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Through Hole	2	Solder	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2.54 mm	0.1 in	Copper Alloy	56
EDAC Inc. 392-112-555-202	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Board Edge Straddle Mount	2	Solder Eyelet(s)	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	2.54 mm	0.1 in	Copper Alloy	56	Card Extender
EDAC Inc. 392-112-521-212	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Through Hole	2	Solder	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2.54 mm	0.1 in	Copper Alloy	56
EDAC Inc. 392-112-544-208	Cantilever	112	Gold	-40 °C	105 ░C	Dual	Through Hole	2	Wire Wrap	Female	2	Polyester Thermoplastic	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		2.54 mm	0.1 in	Copper Alloy	56

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.52
Newark	Each	1	$ 19.72
		100	$ 14.16
		250	$ 12.37
		500	$ 10.62
		1000	$ 7.66

Description

General part information

392-112 Series

112 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
