50-00952
ActiveTensility International Corp
CONN RCPT FMALE 4P GOLD SLDR CUP
50-00952
ActiveTensility International Corp
CONN RCPT FMALE 4P GOLD SLDR CUP
Description
General part information
50-00952

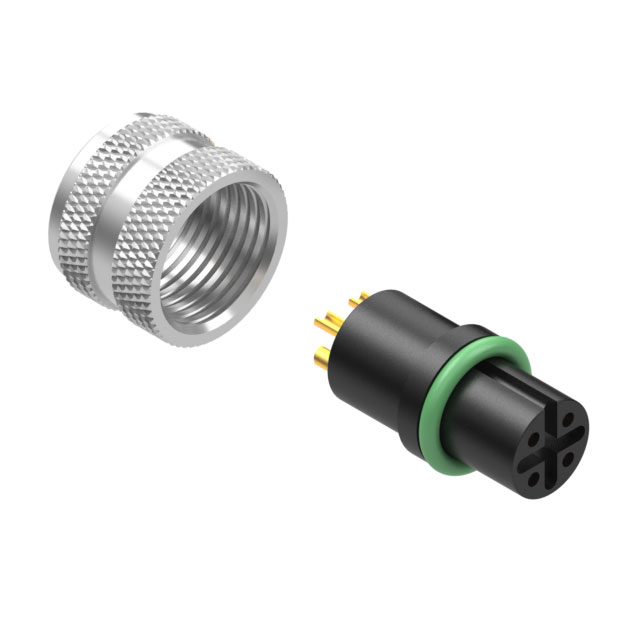

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 50-00952 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 250 V |
