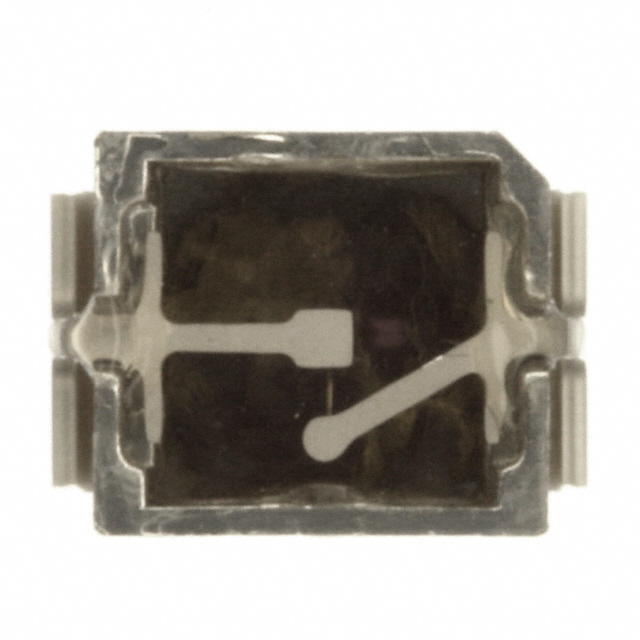

SML-LXIL1618SIC-TR
ObsoleteLumex Opto/Components Inc.
LED 625NM RED WTR CLR 4MM SQ SMD
SML-LXIL1618SIC-TR
ObsoleteLumex Opto/Components Inc.
LED 625NM RED WTR CLR 4MM SQ SMD
Description
General part information
SML-LXIL1618SIC-TR
Red 625nm LED Indication - Discrete 2.2V 1816 (4540 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-LXIL1618SIC-TR |
|---|---|
| Color | Red |
| Current - Test | 30 mA |
| Height (Max) | 2.9 mm |
| Lens Size | 4 mm |
| Lens Style | Square |
| Millicandela Rating | 15000 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1816 (4540 Metric) |
| Package Name | 1618 |
| Size / Dimension Length | 4.5 mm |
| Size / Dimension Width | 4 mm |
| Viewing Angle | 16 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 625 nm |
| Wavelength - Peak | 625 nm |
