1130319
ActivePhoenix Contact
EV-T2M4CC-DC250A-3 5M70ESBK11
1130319
ActivePhoenix Contact
EV-T2M4CC-DC250A-3 5M70ESBK11
Description
General part information
1130319

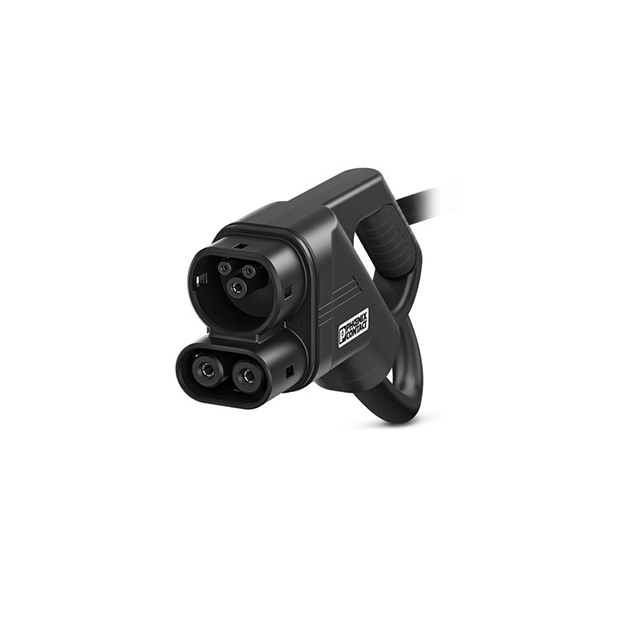

11.48' (3.50m) Power Cord Black IEC 62196-3 (Type 2) To Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 1130319 |
|---|---|
| 1st Connector | IEC 62196-3 (Type 2) |
| 2nd Connector | Cable |
| Color | Black |
| Conductor Types | Signal, Power |
| Current Rating Options | 2A, 250A |
| Length | 11.48 ft |
| Number of Conductors - Power | 3 |
| Number of Conductors - Signal | 2 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -30 °C |
| Shielding | Unshielded |
| Style | Leads, Male Plug |
| Voltage Rating (AC) | 30 VAC |
| Voltage Rating (DC) | 1000 VDC |
| Wire Gauge | 18 AWG, 2/0 AWG, 2 AWG |
