104655-3
ActiveTE Connectivity AMP Connectors

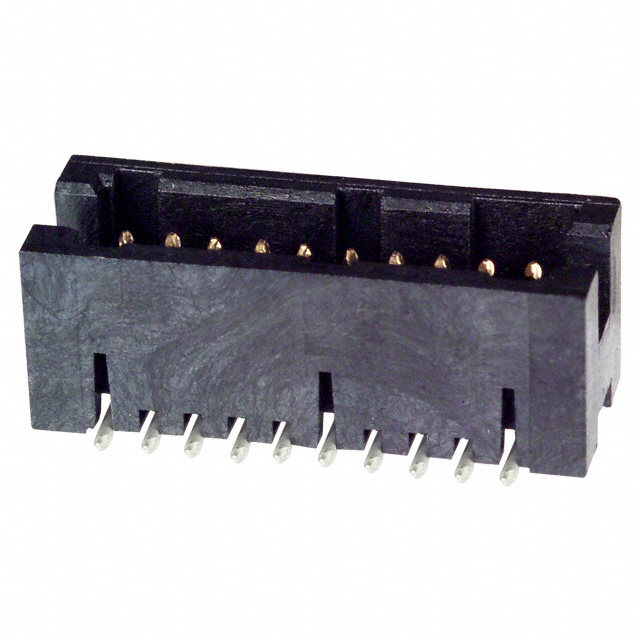

CONN HEADER SMD 20POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
104655-3
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD 20POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104655-3 | 104655 Series |
|---|---|---|
| Applications | Military, Telecommunications, General Purpose, Automotive, Medical | Military, Telecommunications, General Purpose, Automotive, Medical |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Mating | 3.05 mm | 3.05 mm |
| Contact Length - Mating | 0.12 in | 0.12 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 500 mA | 500 mA |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.226 in | 0.226 in |
| Insulation Height | 5.74 mm | 5.74 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 6.35 mm | 6.35 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 20 | 10 - 100 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating | 0.05 in | 0.05 in |
| Row Spacing - Mating | 1.27 mm | 1.27 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 3267 | $ 6.28 | |
104655 Series
CONN HEADER SMD 50POS 1.27MM
| Part | Number of Positions | Contact Length - Mating | Contact Length - Mating | Termination | Shrouding | Fastening Type | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Material Flammability Rating | Contact Finish - Mating | Connector Type | Contact Material | Applications | Insulation Color | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Contact Shape | Contact Finish - Post | Mated Stacking Heights | Mounting Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104655-6 | 50 | 3.05 mm | 0.12 in | Solder | Shrouded - 4 Wall | Push-Pull | 0.05 in | 1.27 mm | 500 mA | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | UL94 V-0 | Gold | Header | Phosphor Bronze | Automotive, General Purpose, Medical, Military, Telecommunications | Black | All | 30 Áin | 0.76 Ám | Male Pin | -65 ░C | 105 ░C | 150 Áin | 3.81 Ám | 2 | Circular | Tin | 6.35 mm | Surface Mount | 0.226 in | 5.74 mm |
TE Connectivity AMP Connectors 5-104655-7 | 60 | 3.05 mm | 0.12 in | Solder | Shrouded - 4 Wall | Push-Pull | 0.05 in | 1.27 mm | 500 mA | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | UL94 V-0 | Gold | Header | Phosphor Bronze | Automotive, General Purpose, Medical, Military, Telecommunications | Black | All | 30 Áin | 0.76 Ám | Male Pin | -65 ░C | 105 ░C | 150 Áin | 3.81 Ám | 2 | Circular | Tin | 6.35 mm | Surface Mount | 0.226 in | 5.74 mm |
TE Connectivity AMP Connectors 104655-6 | 50 | 3.05 mm | 0.12 in | Solder | Shrouded - 4 Wall | Push-Pull | 0.05 in | 1.27 mm | 500 mA | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | UL94 V-0 | Gold | Header | Phosphor Bronze | Automotive, General Purpose, Medical, Military, Telecommunications | Black | All | 30 Áin | 0.76 Ám | Male Pin | -65 ░C | 105 ░C | 150 Áin | 3.81 Ám | 2 | Circular | Tin-Lead | 6.35 mm | Surface Mount | 0.226 in | 5.74 mm |
TE Connectivity AMP Connectors 104655-3 | 20 | 3.05 mm | 0.12 in | Solder | Shrouded - 4 Wall | Push-Pull | 0.05 in | 1.27 mm | 500 mA | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | UL94 V-0 | Gold | Header | Phosphor Bronze | Automotive, General Purpose, Medical, Military, Telecommunications | Black | All | 30 Áin | 0.76 Ám | Male Pin | -65 ░C | 105 ░C | 150 Áin | 3.81 Ám | 2 | Circular | Tin-Lead | 6.35 mm | Surface Mount | 0.226 in | 5.74 mm |
TE Connectivity AMP Connectors 1-104655-1 | 100 | 3.05 mm | 0.12 in | Solder | Shrouded - 4 Wall | Push-Pull | 0.05 in | 1.27 mm | 500 mA | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | UL94 V-0 | Gold | Header | Phosphor Bronze | Automotive, General Purpose, Medical, Military, Telecommunications | Black | All | 30 Áin | 0.76 Ám | Male Pin | -65 ░C | 105 ░C | 150 Áin | 3.81 Ám | 2 | Circular | Tin-Lead | 6.35 mm | Surface Mount | 0.226 in | 5.74 mm |
TE Connectivity AMP Connectors 104655-7 | 60 | 3.05 mm | 0.12 in | Solder | Shrouded - 4 Wall | Push-Pull | 0.05 in | 1.27 mm | 500 mA | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | UL94 V-0 | Gold | Header | Phosphor Bronze | Automotive, General Purpose, Medical, Military, Telecommunications | Black | All | 30 Áin | 0.76 Ám | Male Pin | -65 ░C | 105 ░C | 150 Áin | 3.81 Ám | 2 | Circular | Tin-Lead | 6.35 mm | Surface Mount | 0.226 in | 5.74 mm |
TE Connectivity AMP Connectors 5-104655-1 | 10 | 3.05 mm | 0.12 in | Solder | Shrouded - 4 Wall | Push-Pull | 0.05 in | 1.27 mm | 500 mA | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | UL94 V-0 | Gold | Header | Phosphor Bronze | Automotive, General Purpose, Medical, Military, Telecommunications | Black | All | 30 Áin | 0.76 Ám | Male Pin | -65 ░C | 105 ░C | 150 Áin | 3.81 Ám | 2 | Circular | Tin | 6.35 mm | Surface Mount | 0.226 in | 5.74 mm |
TE Connectivity AMP Connectors 6-104655-1 | 100 | 3.05 mm | 0.12 in | Solder | Shrouded - 4 Wall | Push-Pull | 0.05 in | 1.27 mm | 500 mA | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | UL94 V-0 | Gold | Header | Phosphor Bronze | Automotive, General Purpose, Medical, Military, Telecommunications | Black | All | 30 Áin | 0.76 Ám | Male Pin | -65 ░C | 105 ░C | 150 Áin | 3.81 Ám | 2 | Circular | Tin | 6.35 mm | Surface Mount | 0.226 in | 5.74 mm |
Description
General part information
104655 Series
Connector Header Surface Mount 20 position 0.050" (1.27mm)
