M3URK-5036J

Active

IDC CABLE - MKS50K/MC50G/MPR50K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 4600 Series Drawing +1

M3URK-5036J

Active

IDC CABLE - MKS50K/MC50G/MPR50K

Deep-Dive with AI

DocumentsDatasheet 4600 Series Drawing +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.77
		10	$ 33.87
		25	$ 30.72
		50	$ 28.60
		100	$ 26.68
		250	$ 24.41

Description

General part information

M3URK Series

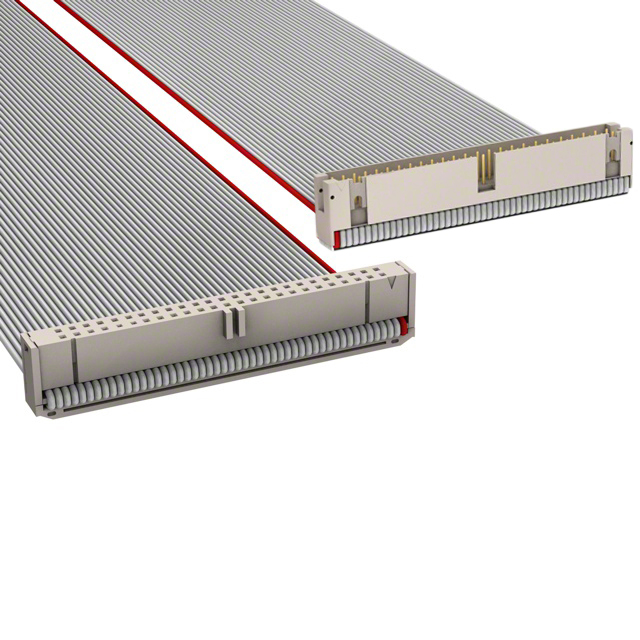

50 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)

Documents

Technical documentation and resources

Datasheet

4600 Series Drawing

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3URK-5036J	M3URK Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length	-	1.52 - 508 mm
Length	-	6 "
Length	-	0.5 '
Length	-	1.67 - 5 ft
Length [x]	3 ft	1.5 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	50	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3URK Series

IDC CABLE - MKS20K/MC20M/MPR20K

Part	Pitch - Cable	Pitch - Cable	Number of Positions	Length	Length	Length	Number of Rows	Connector Type	Shielding	Color	Pitch - Connector	Pitch - Connector	Features	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length [x]	Length [x]	Length	Number of Positions
3M M3URK-2006R	0.05 "	1.27 mm	20	152.4 mm	6 "	0.5 '	2	Socket to Plug	Unshielded	Multiple, Ribbon	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold
3M M3URK-6036R	0.05 "	1.27 mm	60				2	Socket to Plug	Unshielded	Multiple, Ribbon	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold	3 ft	914.4 mm
3M M3URK-3440K	0.05 "	1.27 mm	34				2	Socket to Plug	Unshielded	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold	3.34 ft	1.02 m
3M M3URK-4036R	0.05 "	1.27 mm	40				2	Socket to Plug	Unshielded	Multiple, Ribbon	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold	3 ft	914.4 mm
3M M3URK-1020K	0.05 "	1.27 mm	10	508 mm			2	Socket to Plug	Unshielded	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold			1.67 ft
3M M3URK-2606R	0.05 "	1.27 mm	26	152.4 mm	6 "	0.5 '	2	Socket to Plug	Unshielded	Multiple, Ribbon	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold
3M M3URK-5020K	0.05 "	1.27 mm	50	508 mm			2	Socket to Plug	Unshielded	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold			1.67 ft
3M M3URK-1640K	0.05 "	1.27 mm					2	Socket to Plug	Unshielded	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold	3.34 ft	1.02 m		16
3M M3URK-1040K	0.05 "	1.27 mm	10				2	Socket to Plug	Unshielded	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold	3.34 ft	1.02 m
3M M3URK-1060K	0.05 "	1.27 mm	10	1.52 m			2	Socket to Plug	Unshielded	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	Polarizing Key, Strain Relief	IDC	0.76 Ám	30 Áin	Gold			5 '
