TDA306-6C
ActivePasternack

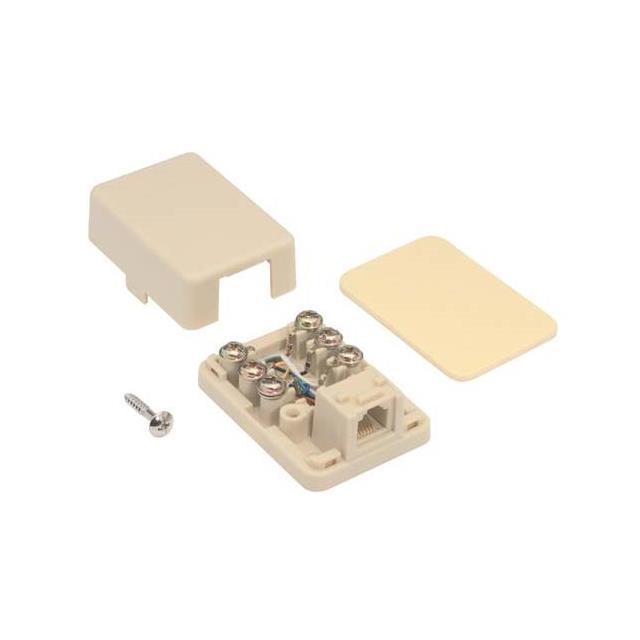

RJ12 (6X6) JACK END ACCESS
TDA306-6C
ActivePasternack
RJ12 (6X6) JACK END ACCESS
Description
General part information
TDA306-6C
Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | TDA306-6C |
|---|---|
| Connector Type | RJ25, RJ11, RJ12, RJ14, Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Surface Mount |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | Unshielded |
| Tab Direction | Up |
| Termination | Screw |
