Description
General part information
205229

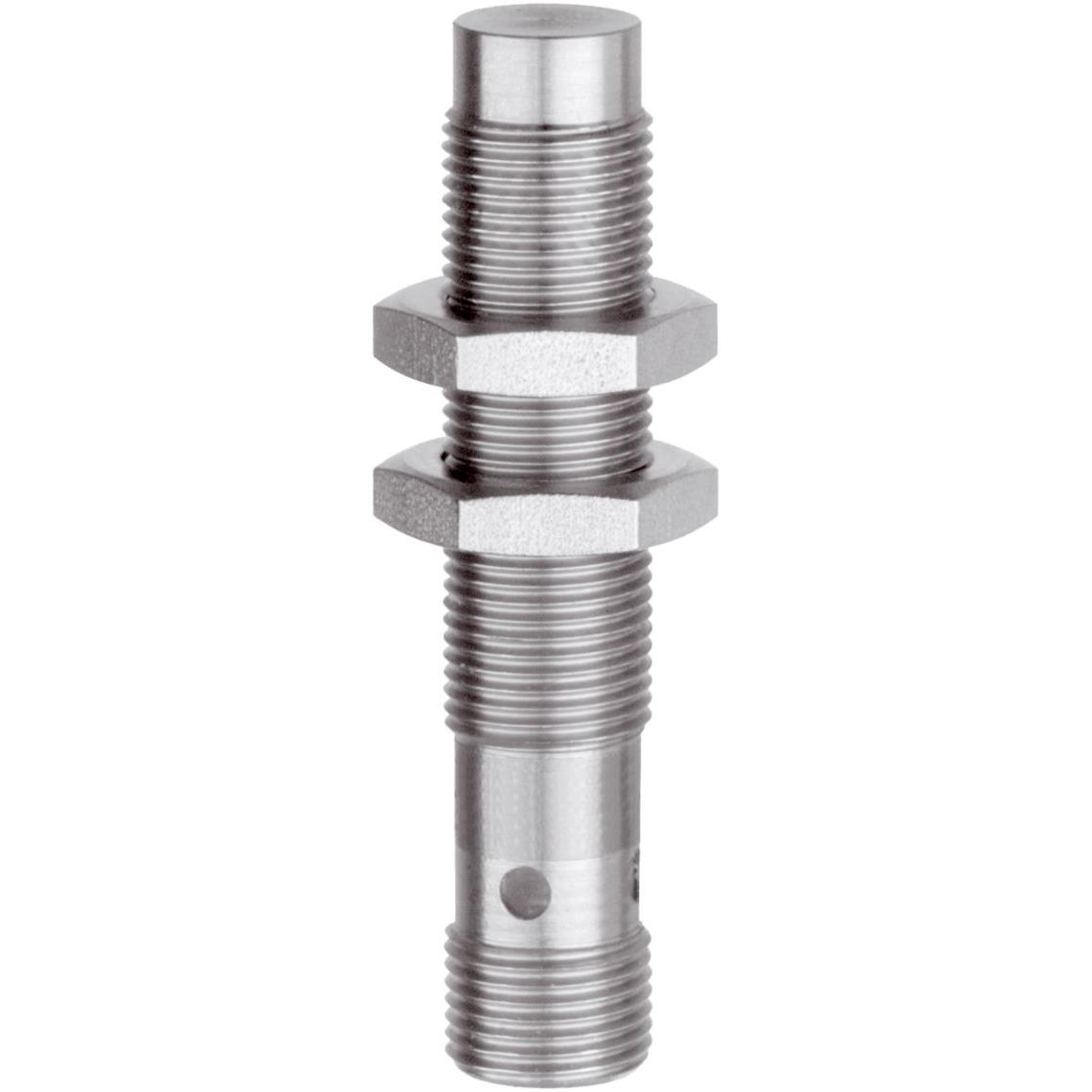

SENSOR PROX INDUCTIVE 10MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | 205229 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Chrome-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NPN-NC, 3-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
