97-3100A-28-18P

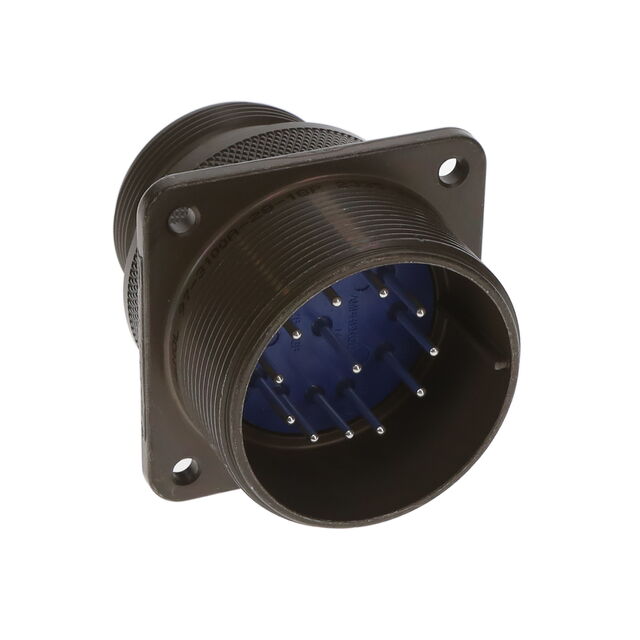

12 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-3100A-28-18P |
|---|---|
| Applications | Automotive, Industrial |
| Backshell Material, Plating | Aluminum Alloy, Olive Drab Cadmium |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 13 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Insert Material | Diallyl Phthalate, DAP |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert Length | 28 mm |
| Shell Size - Insert Width | 18 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
