11_BNO-0-4-1/133_NE

Active

Huber+Suhner, Inc.

11_BNO-0-4-1/133_NE

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

11_BNO-0-4-1/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	11_BNO-0-4-1/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-108
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNO
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Ethylenterafluorineethylene (ETFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	200 MHz
Housing Color	Silver
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shield Termination	Crimp

11_BNO-0-4-1/133_NE

Part	Connector Type	Dielectric Material	Fastening Type	Center Contact Material	Center Contact Plating	Number of Ports	Housing Color	Mounting Type	Cable Group	Contact Termination	Body Finish	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Shield Termination	Frequency - Max [Max]
Huber+Suhner, Inc. 11_BNO-0-4-1/133_NE	Male Pin, Plug	Ethylenterafluorineethylene (ETFE)	Bayonet Lock	Beryllium Copper, Brass	Gold	1	Silver	Free Hanging (In-Line)	RG-108	Solder	White Bronze	Brass	-50 °C	125 °C	BNO	Crimp	200 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

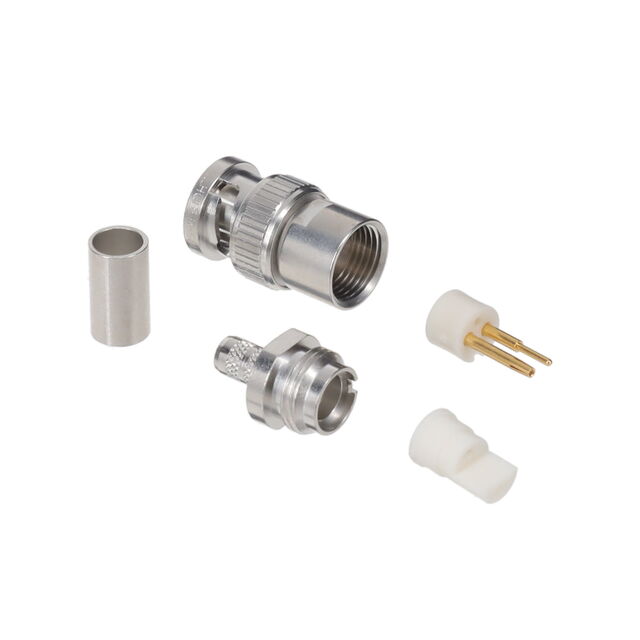

BNO Connector Plug, Male Pin Free Hanging (In-Line) Solder
