Description
General part information

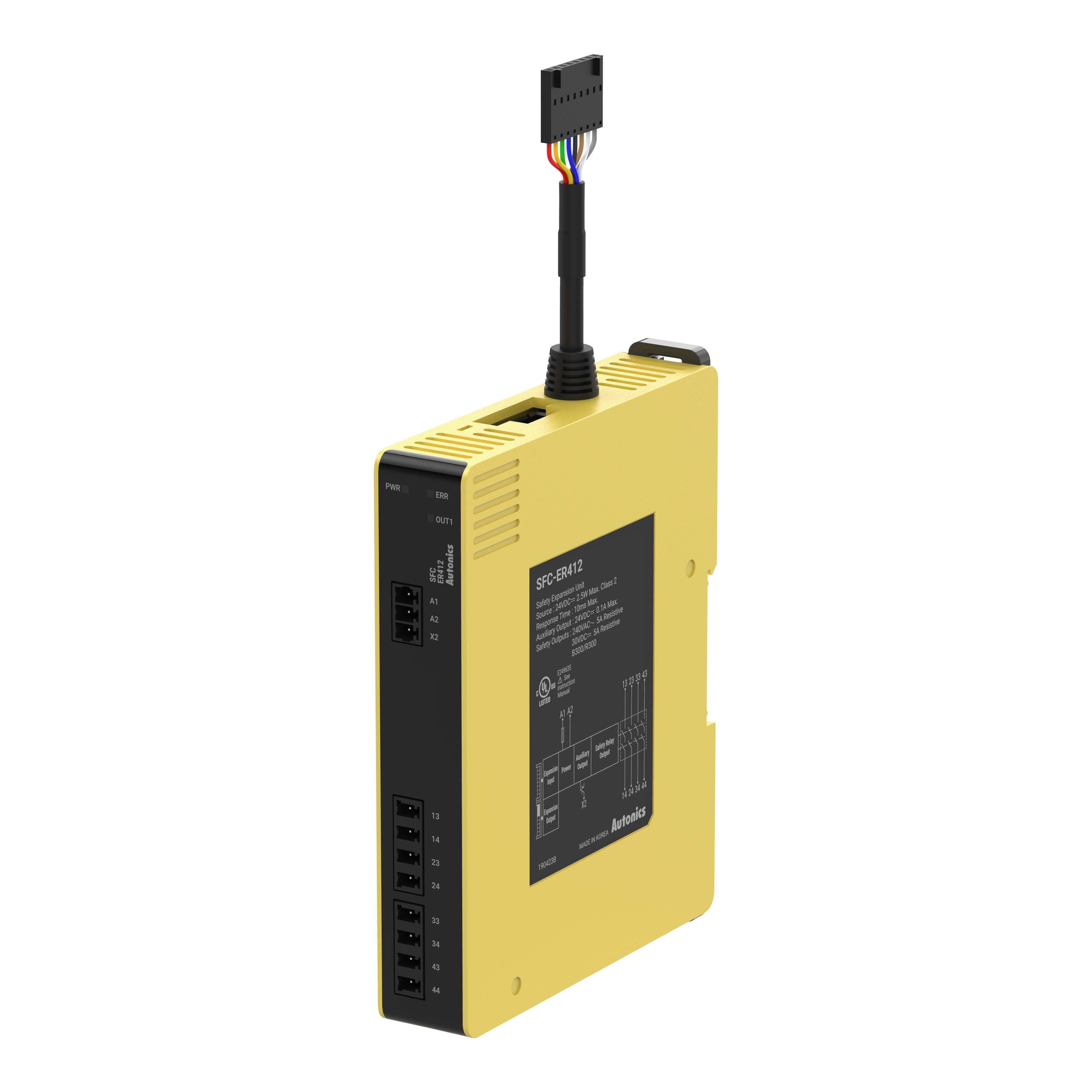

SFC-ER412-L
Machine Safety Controller Expansion Module 24VDC Supply DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | SFC-ER412-L |
|---|---|
| Approval Agency | TUV, S-Mark, EAC, CE, cULus |
| Auxiliary Output Type | Solid State |
| Contact Rating (Current) | 5 A |
| Controller Type | Expansion Module |
| Ingress Protection | IP20 |
| Input Types | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 5 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Safety Category | PLe, Category 4, SIL3 |
| Safety Output Type | Relay |
| Safety Outputs (Count) | 4 count |
| Termination Style | Spring Terminal |
| Voltage - Supply | 24 VDC |
| Voltage Rating | 240VAC, 30VDC |
| Weight | 0.331 lb |
