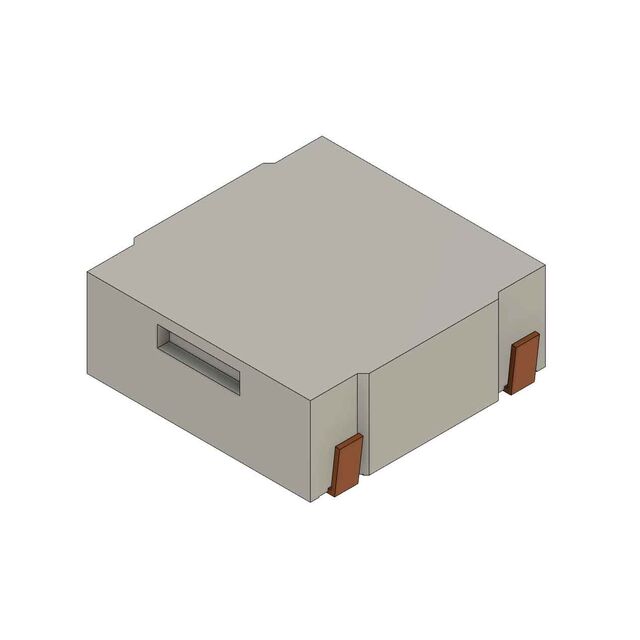

SMT-0827-S-10-R
ActivePUI Audio, Inc.
BUZZER 3.6V 8MMX7.6MM W SMD
SMT-0827-S-10-R
ActivePUI Audio, Inc.
BUZZER 3.6V 8MMX7.6MM W SMD
Description
General part information
SMT-0827-S-10-R
Buzzers Transducer, Externally Driven 3.6 V 45mA 2.731kHz 82dB @ 3.6V, 10cm Surface Mount Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-0827-S-10-R |
|---|---|
| Current - Supply | 45 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.731 kHz |
| Height - Seated (Max) | 0.126 in |
| Input Type | AC |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Port Location | Top |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.299 in |
| Sound Pressure Level (SPL) | 82 dB |
| Termination | Solder Pads |
| Voltage - Rated | 3.6 VDC |
| Voltage Range (Max) | 4.5 V |
| Voltage Range (Min) | 2.5 V |
