TCSCTN011M11F
ActiveSCHNEIDER ELECTRIC

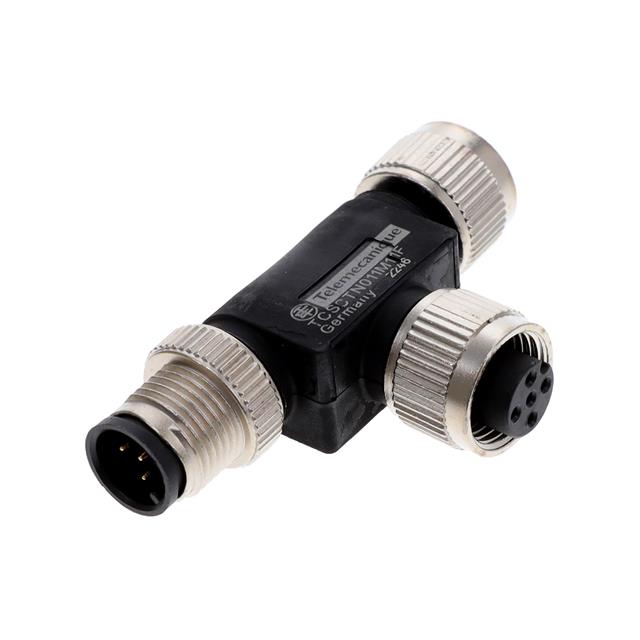

SENSOR SPLITTER, T - STYLE, CABLE MOUNT, 5 POSITION M12 PLUG, 2 X 5 POSITION M12 RECEPTACLE
TCSCTN011M11F
ActiveSCHNEIDER ELECTRIC
SENSOR SPLITTER, T - STYLE, CABLE MOUNT, 5 POSITION M12 PLUG, 2 X 5 POSITION M12 RECEPTACLE
Description
General part information
TCSCTN011M11F
Circular Connector Distributor T-Shaped 5/5 (2) Male Pins/Female Sockets (2) Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | TCSCTN011M11F |
|---|---|
| Connector Style | Distributor T-Shaped |
| Convert From (Adapter End) | Male Pins |
| Convert To (Adapter End) | Female Sockets |
| Convert To (Adapter End) Count | 2 count |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Housing Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 5 |
| Number of Positions (Convert To) | 5 |
| Number of Positions (Convert To) Secondary | 2 |
| Orientation (Convert From) | A |
| Orientation (Convert To) | A |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) | M12 |
| Shielding | Unshielded |
