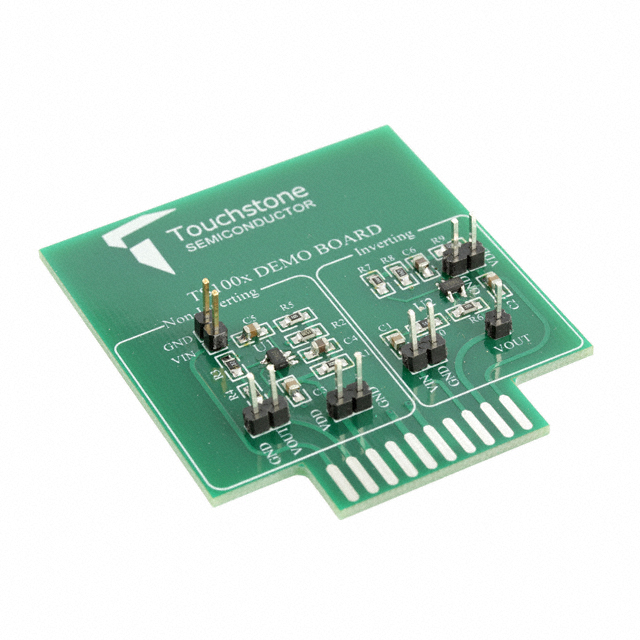

TS1003 SOT23-5 OP AMP DEMO BOARD
TS1003DB-SOT
UnknownSILICON LABS
TS1003 SOT23-5 OP AMP DEMO BOARD
Description
General part information
TS1003DB-SOT
TS1003 1 - Single Channels per IC General Purpose Amplifier Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TS1003DB-SOT |
|---|---|
| Amplifier Type | General Purpose, Standard (General Purpose) |
| Board Type | Fully Populated |
| Channels per IC (Count) | 1 |
| Channels per IC (Single) | 1 |
| Channels per IC (Type) | Single |
| Contents | Board |
| Current - Output / Channel | 15 mA |
| Current - Supply (Main IC) | 6e-7 nA |
| Gain Bandwidth Product | 4 kHz |
| Output Type | Rail-to-Rail, Single-Ended |
| Slew Rate | 0.0015 V/µs |
| Supplied Contents | Board(s) |
| Supply Configuration | Dual, Single |
| Utilized IC / Part | TS1003 |
| Voltage - Supply (Single) Maximum | 5.5 V |
| Voltage - Supply (Single) Minimum | 0.8 V |
