MC7520D/AA
ActiveMcGill Microwave Systems
D SUB CONTACT, SIZE 20, POSITRONIC SD SERIES D-SUB HOUSINGS, PIN, COPPER ALLOY
MC7520D/AA
ActiveMcGill Microwave Systems
D SUB CONTACT, SIZE 20, POSITRONIC SD SERIES D-SUB HOUSINGS, PIN, COPPER ALLOY
Description
General part information
MC7520D/AA

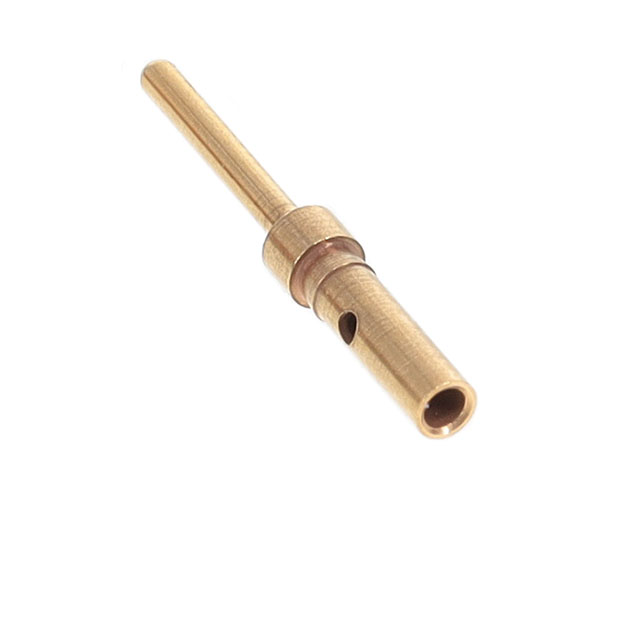

D-Sub Contact Male Pin Gold Crimp Machined
Technical Specifications
Parameters and characteristics for this part
| Specification | MC7520D/AA |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0, 50 µin |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Form | Machined |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Pin or Socket | Pin |
| Type | Signal, Machined |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
