1969590-5
ActiveTE Connectivity AMP Connectors

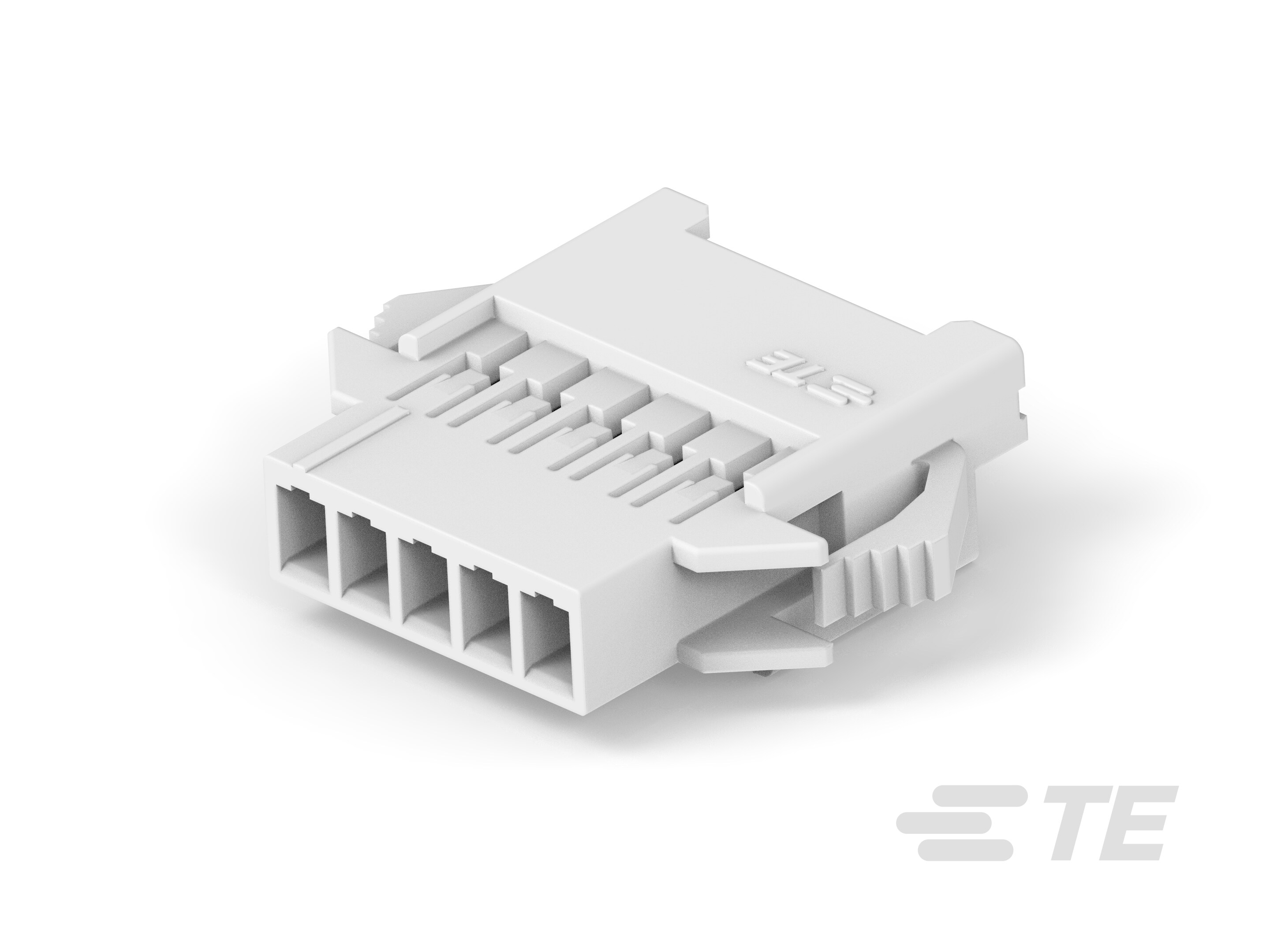

HSG, REC, PANEL MOUNT, SINGLE ROW,EP2.5
1969590-5
ActiveTE Connectivity AMP Connectors
HSG, REC, PANEL MOUNT, SINGLE ROW,EP2.5
Description
General part information
1969590-5
Housing, Receptacle, Wire-to-Panel / Wire-to-Wire, 5 Position, 2.5 mm [.098 in] Centerline, Crimp, 1 Row, White, Wire & Cable, Economy Power 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 1969590-5 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Pitch | 0.098 in |
