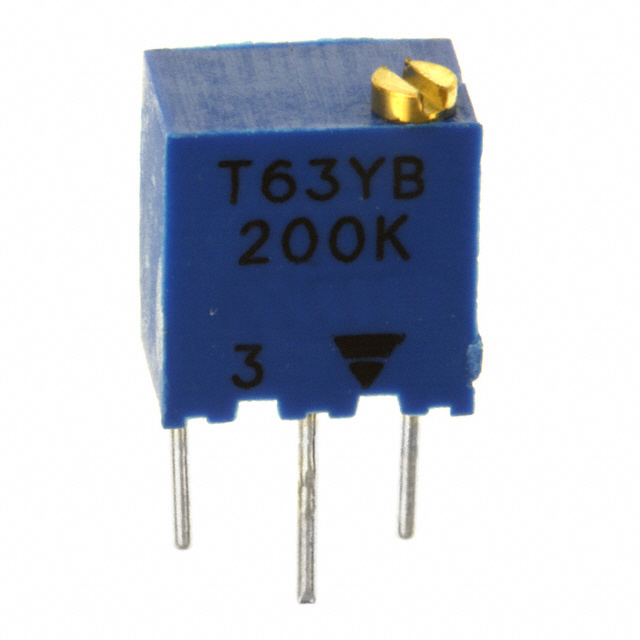

T63YB204KT20
ActiveVishay Dale
TRIMMER 200KOHM 0.25W PC PIN TOP
T63YB204KT20
ActiveVishay Dale
TRIMMER 200KOHM 0.25W PC PIN TOP
Description
General part information
T63YB204KT20
200 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 15.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | T63YB204KT20 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 15 turns |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 200 kOhm |
| Resistive Material | Cermet |
| Size / Dimension Length | 0.268 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.197 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
