XS1N30PA349TF
ActiveSCHNEIDER ELECTRIC

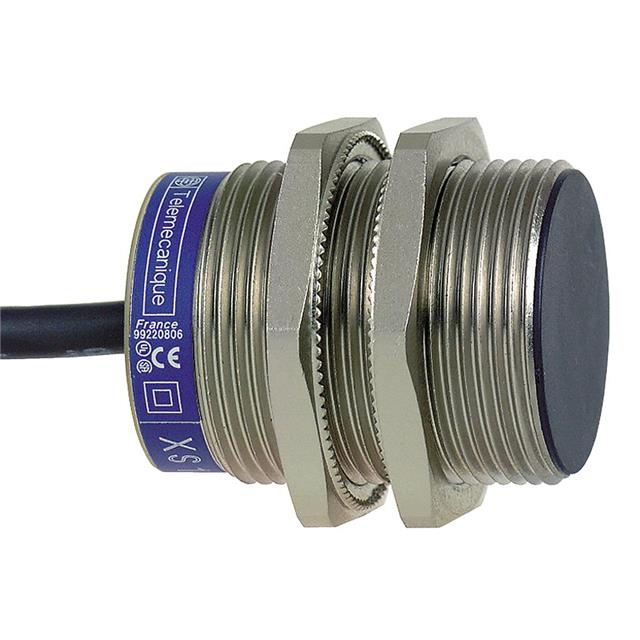

INDUCTIVE PROXIMITY SENSOR, 20MM, PNP, M30 X 1, 12V TO 24V, XS SERIES
XS1N30PA349TF
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 20MM, PNP, M30 X 1, 12V TO 24V, XS SERIES
Description
General part information
XS1N30PA349TF
Inductive Proximity Sensor 0.787" (20mm) IP68, IP69K Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XS1N30PA349TF |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP69K |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.787 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
