MFU0402FF01750E100
ActiveVishay Dale
FUSE BOARD MNT 1.75A 32VDC 0402
MFU0402FF01750E100
ActiveVishay Dale
FUSE BOARD MNT 1.75A 32VDC 0402
Description
General part information
MFU0402FF01750E100

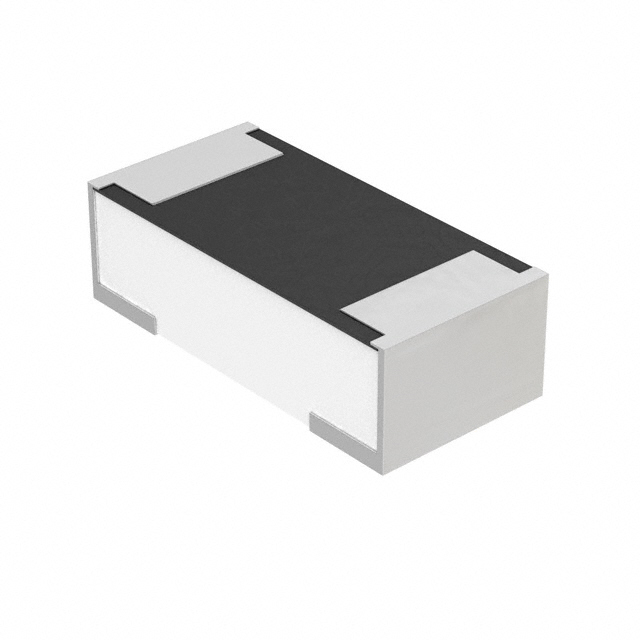

1.75 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MFU0402FF01750E100 |
|---|---|
| Approval Agency | UL |
| Breaking Capacity | 50 A |
| Current Rating | 1.75 A |
| DC Cold Resistance | 0.054 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.0077 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.013 in |
| Size / Dimension Length | 0.04 in |
| Size / Dimension Width | 0.02 in |
| Voltage Rating - DC | 32 V |
