020823060
ActiveRose Enclosures
BOX FIBERGLASS 9.06"L X 2.95"W
020823060
ActiveRose Enclosures
BOX FIBERGLASS 9.06"L X 2.95"W
Description
General part information
020823060

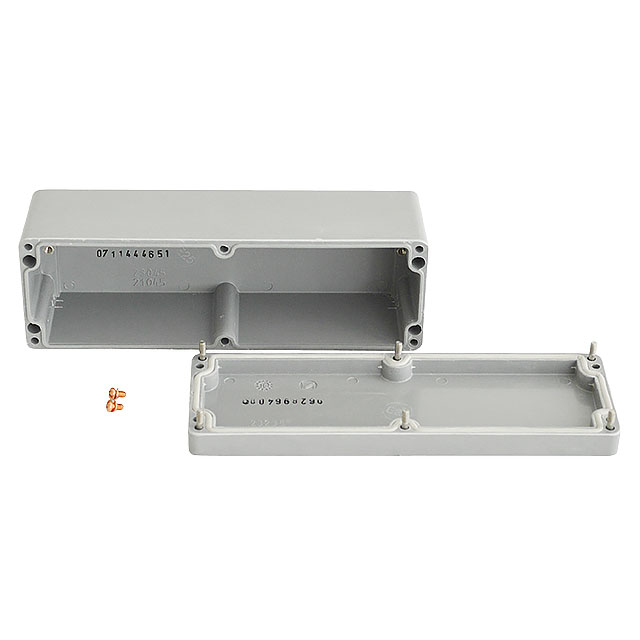

Box Fiberglass/Polyester Gray Cover Included 9.055" L x 2.953" W (230.00mm x 75.00mm) X 2.224" (56.50mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 020823060 |
|---|---|
| Area (L x W) | 26.7 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 2.224 in |
| Material | Fiberglass, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 9.055 in |
| Size / Dimension Width | 2.953 in |
| Thickness | 0.197 in |
| Weight | 1.3 lbs |
