BFC280831809
ObsoleteVishay Dale
CAP TRIMMER 6-80PF 150V TH
BFC280831809
ObsoleteVishay Dale
CAP TRIMMER 6-80PF 150V TH
Description
General part information
BFC280831809

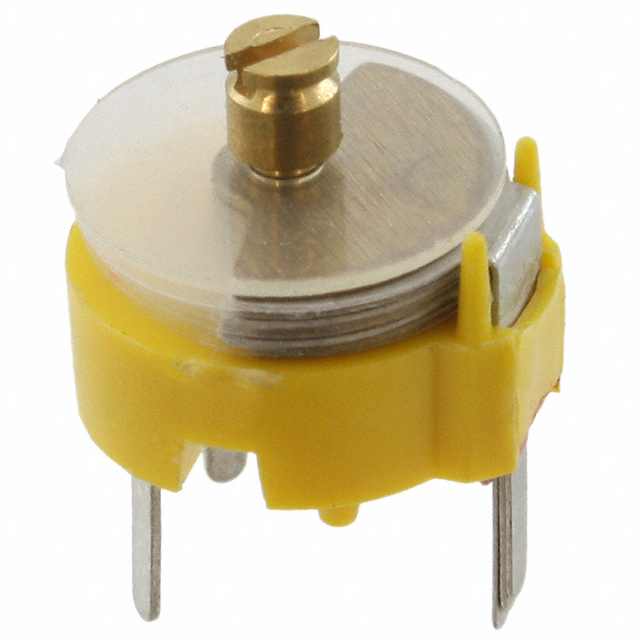

6 ~ 80pF Trimmer Capacitor 150 V Top and Bottom Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | BFC280831809 |
|---|---|
| Adjustment Type | Bottom, Top |
| Capacitance Range (Max) | 80 pF |
| Capacitance Range (Min) | 6 pF |
| Dielectric Material | Polycarbonate (PC) |
| Features | General Purpose |
| Height - Seated (Max) | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Diameter | 0.299 in |
| Voltage - Rated | 150 VAC |
