GSBAT46WS
ActiveGood-Ark Semiconductor
DIODE, SCHOTTKY, 150MA, 100V, SO
GSBAT46WS
ActiveGood-Ark Semiconductor
DIODE, SCHOTTKY, 150MA, 100V, SO
Description
General part information
GSBAT46WS

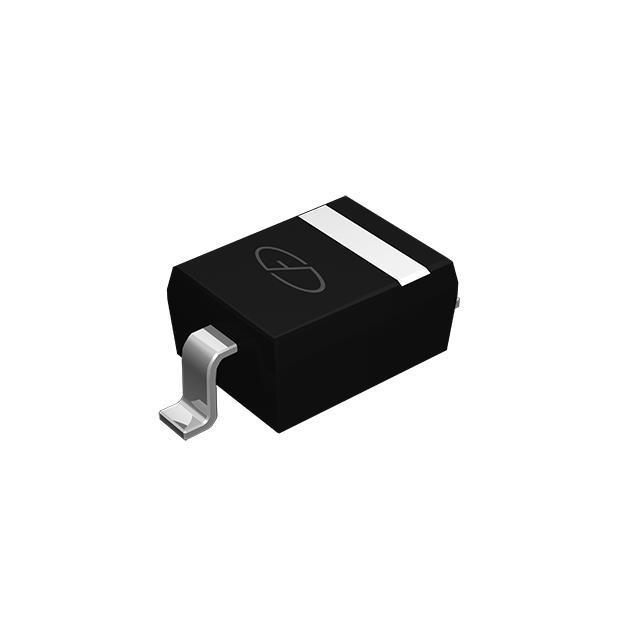

Diode 100 V 150mA Surface Mount SOD-323
Technical Specifications
Parameters and characteristics for this part
| Specification | GSBAT46WS |
|---|---|
| Capacitance | 20 pF |
| Current - Average Rectified (Io) | 150 mA |
| Current - Reverse Leakage | 2 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 125 °C |
| Package / Case | SC-76, SOD-323 |
| Package Name | SOD-323 |
| Speed | Any Speed, Small Signal |
| Speed - Fast Recovery (Maximum) | 200 mA |
| Speed - Small Signal Current Max | 200 mA, 200 mA, 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) | 450 mV |
