Part	Illumination Voltage (Nominal)	Color - Actuator/Cap	Actuator Marking	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating - AC	Current Rating	Color	Illumination Type	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Panel Cutout Diameter	Panel Cutout Shape	Switch Function	Termination Style	Circuit	Actuator Type	Features	Type	Electrical Life (Cycles)	Mechanical Life (Cycles)

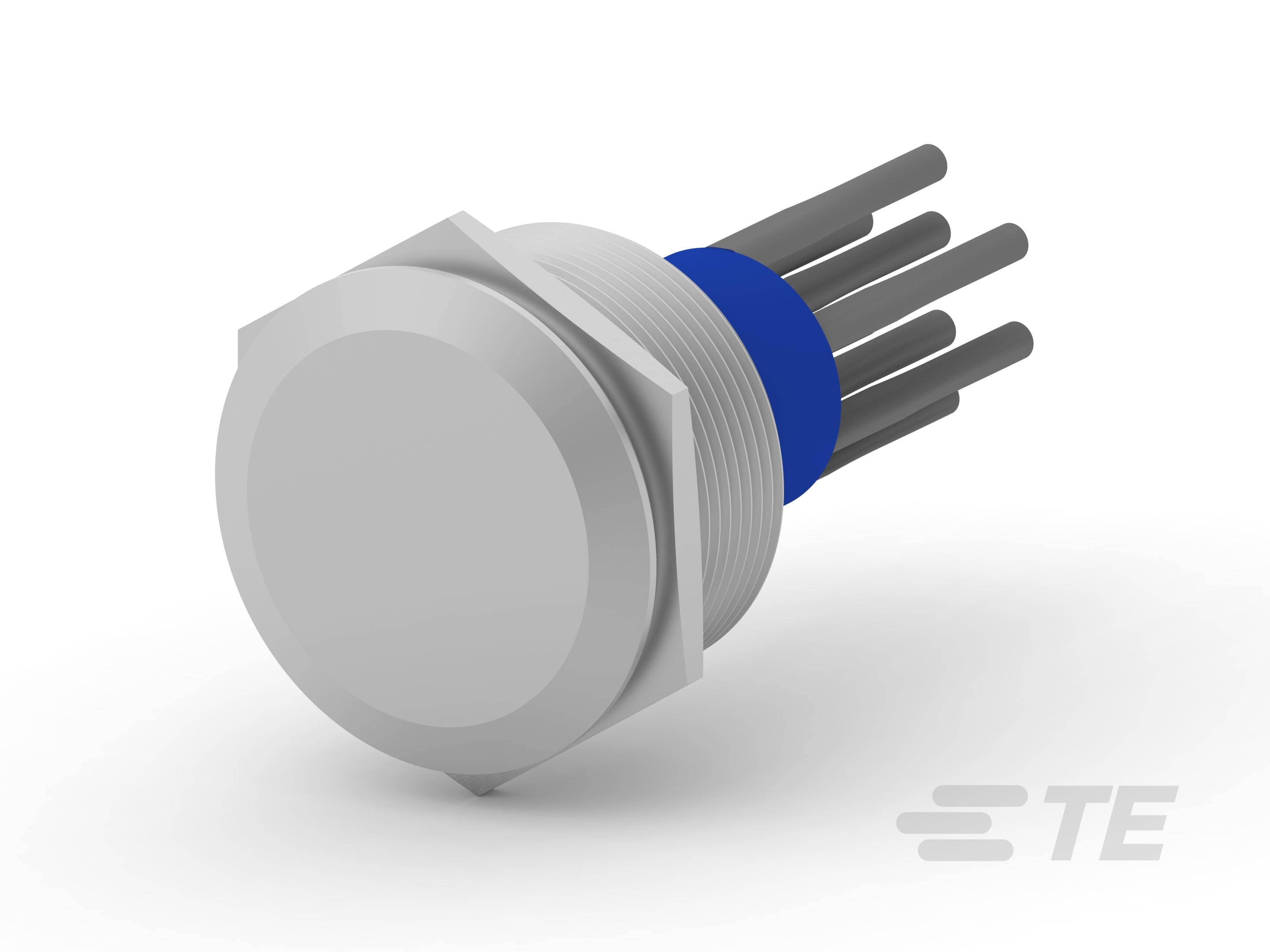

TE Connectivity AMP Connectors AV2510MA12T5Q04	12 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Green Red	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-Mom	Wire Leads	SPDT	Button Flush Round	Moving LED Ring Power Symbol	Anti-Vandal Illuminated
TE Connectivity AMP Connectors AV2520E624Q04	24 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Green	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-Mom	Solder Lug	DPDT	Button Flush Round		Anti-Vandal Illuminated
TE Connectivity AMP Connectors AV2510E512Q04	12 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Yellow	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-Mom	Solder Lug	SPDT	Button Flush Round		Anti-Vandal Illuminated
TE Connectivity AMP Connectors AV2511EA24T5Q04	24 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Green Red	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-On	Wire Leads	SPDT	Button Flush Round		Anti-Vandal Illuminated	50000	500000 Cycles
TE Connectivity AMP Connectors AV2521M624Q04	24 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Green	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-On	Solder Lug	DPDT	Button Flush Round	Moving LED Ring Power Symbol	Anti-Vandal Illuminated
TE Connectivity AMP Connectors AV2520E712Q04	12 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Blue	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-Mom	Solder Lug	DPDT	Button Flush Round		Anti-Vandal Illuminated	50000	1000000 Cycles
TE Connectivity AMP Connectors AV2510EA12T5Q04	12 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Green Red	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-Mom	Wire Leads	SPDT	Button Flush Round		Anti-Vandal Illuminated
TE Connectivity AMP Connectors AV2510M612Q04	12 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Green	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-Mom	Solder Lug	SPDT	Button Flush Round	Moving LED Ring Power Symbol	Anti-Vandal Illuminated	50000	1000000 Cycles
TE Connectivity AMP Connectors AV2520M324Q04	24 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Red	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-Mom	Solder Lug	DPDT	Button Flush Round	Moving LED Ring Power Symbol	Anti-Vandal Illuminated
TE Connectivity AMP Connectors AV2510E512Q04	12 V	Silver	No Marking	Dust Tight Waterproof	IP67	250 V	3 A	Yellow	LED	Front Panel Mount	-20 °C	55 °C	25.2 mm	Circular	On-Mom	Solder Lug	SPDT	Button Flush Round		Anti-Vandal Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

ALCOSWITCH Anti-Vandal Switch

Anti Vandal Switches Certificate of Compliance

ENG_CD_2317657_A1.pdf
