N310-003
ActiveEaton Tripp Lite

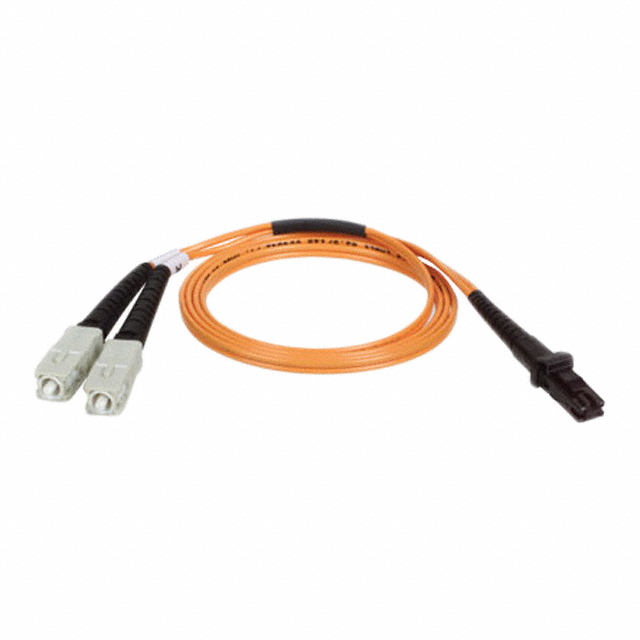

NETWORK CABLE, MTRJ FIBRE OPTIC, 1 M, 3 FT, ORANGE
N310-003
ActiveEaton Tripp Lite
NETWORK CABLE, MTRJ FIBRE OPTIC, 1 M, 3 FT, ORANGE
Description
General part information
N310-003
Cable Fiber Optic SC Duplex To MT-RJ 62.5/125 3.00' (914mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | N310-003 |
|---|---|
| 1st Connector | SC Duplex |
| 2nd Connector | MT-RJ |
| Cable Type | Twin Zip |
| Color - Cable | Orange |
| Color - Connectors | Beige, Black |
| Features | Zipcord, Riser |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Insertion Loss | 0.2 dB |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall | 3 ft |
| Ratings | FDDI, OFNR |
| Type | Multimode, Duplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
