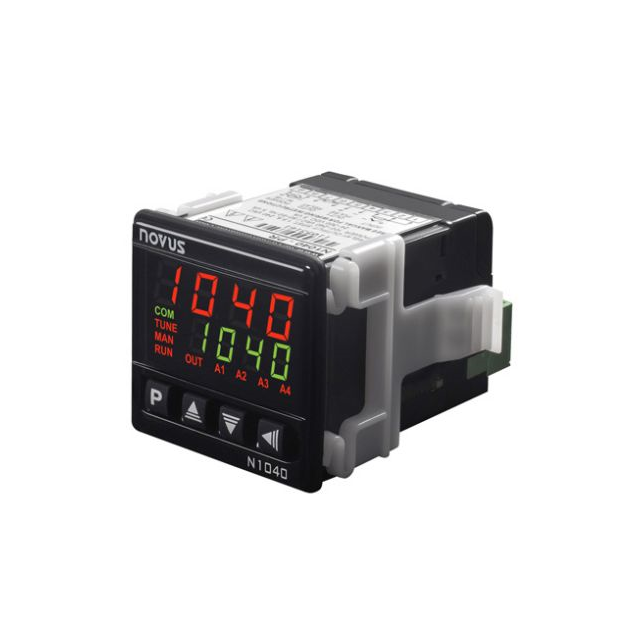

Specification	8104211307

Communications	RS-485, USB
Control Method	Off, Proportional (PID), On
Display Type	LED - Dual Color Characters
Features	USB Configurable, Sensor Fault Detection, Auto-Tuning, Timer, Alarm Signaling, Ramp and Soak
Ingress Protection (Front)	IP65
Ingress Protection (Rear)	IP20
Input Temperature (Max)	1370 °C
Input Temperature (Max) (°F)	2498 °F
Input Temperature (Max) (Range 1)	1370 °C
Input Temperature (Max) (Range 2)	2498 °F
Input Temperature (Min)	-200 °C
Input Temperature (Min) (°F)	-328 °F
Input Temperature (Min) (Range 1)	-200 °C
Input Temperature (Min) (Range 2)	-328 °F
Maximum Number of Characters Per Row	4 characters
Minimum Number of Characters Per Row	4 characters
Mounting Type	Panel Mount
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Output Type	Relay, Voltage (External SSR)
Panel Cutout Length	45.5 mm
Panel Cutout Shape	Square
Panel Cutout Width	45.5 mm
Termination Style	Screw Terminal
Type	T), Type J, Temperature Controller (RTD, K
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	100 VAC
