0800501:0004
ActivePhoenix Contact

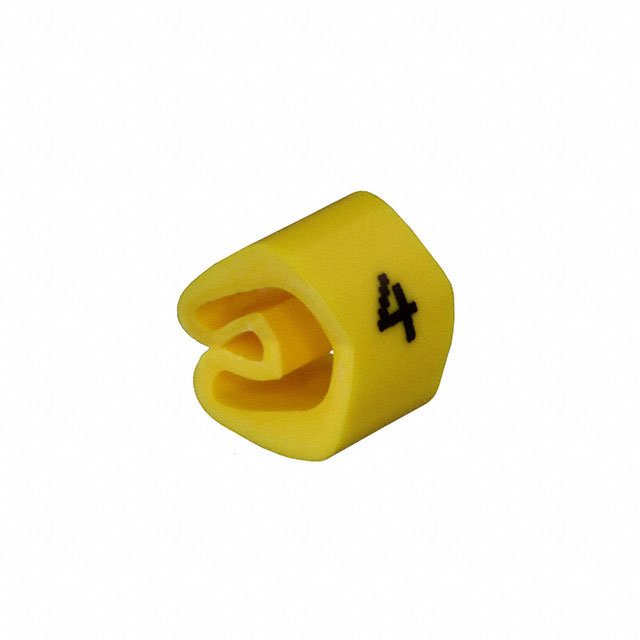

WIRE MARKER SLIP-ON YELLOW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0800501:0004 | 0800501 Series |
|---|---|---|
| Cable Diameter [Max] [diameter] | 0.236 in | 0.236 in |
| Cable Diameter [Max] [diameter] | 6 mm | 6 mm |
| Cable Diameter [Min] [diameter] | 0.118 in | 0.118 in |
| Cable Diameter [Min] [diameter] | 3 mm | 3 mm |
| Color | Yellow | Yellow |
| Legend | 4 | 8, 9, 2, 1, 4 |
| Legend | - | 0 |
| Material | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -45 °C | -45 °C |
| Type | Wire Marker, Slip-On | Wire Marker, Slip-On |
0800501 Series
WIRE MARKER SLIP-ON YELLOW
| Part | Legend | Type | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Legend |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0800501:0000 | 0 | Wire Marker, Slip-On | 0.236 in | 0.118 in | 3 mm | 6 mm | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | -45 °C | 70 °C | Yellow | |
Phoenix Contact 0800501:0008 | Wire Marker, Slip-On | 0.236 in | 0.118 in | 3 mm | 6 mm | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | -45 °C | 70 °C | Yellow | 8 | |
Phoenix Contact 0800501:0009 | Wire Marker, Slip-On | 0.236 in | 0.118 in | 3 mm | 6 mm | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | -45 °C | 70 °C | Yellow | 9 | |
Phoenix Contact 0800501:0002 | Wire Marker, Slip-On | 0.236 in | 0.118 in | 3 mm | 6 mm | Yellow | 2 | ||||
Phoenix Contact 0800501:0001 | Wire Marker, Slip-On | 0.236 in | 0.118 in | 3 mm | 6 mm | Yellow | 1 | ||||
Phoenix Contact 0800501:0004 | Wire Marker, Slip-On | 0.236 in | 0.118 in | 3 mm | 6 mm | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | -45 °C | 70 °C | Yellow | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.14 | |
Description
General part information
0800501 Series
Wire Marker, Slip-On Yellow Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free
