HD-EM0803-LW20-R
ActivePUI Audio, Inc.

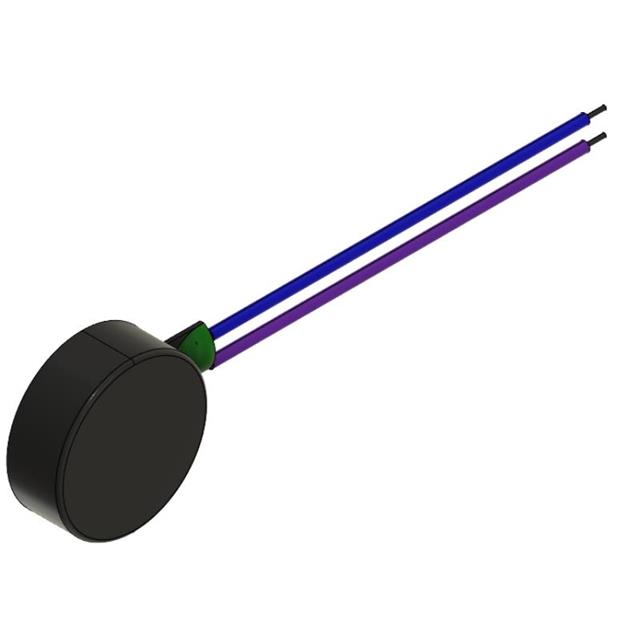

DC MOTOR, HAPTIC, 3 VDC, 12000 RPM, 8 MM
HD-EM0803-LW20-R
ActivePUI Audio, Inc.
DC MOTOR, HAPTIC, 3 VDC, 12000 RPM, 8 MM
Description
General part information
HD-EM0803-LW20-R
DC Motor Vibration, ERM 12000 RPM 3VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | HD-EM0803-LW20-R |
|---|---|
| Function | Vibration, ERM, ERM (Haptic) |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| RPM | 12000 RPM |
| Size / Dimension Diameter | 0.315 in |
| Size / Dimension Shape | Round |
| Termination Style | Wire Leads |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
