2-1601035-2
NRNDTE Connectivity AMP Connectors
CONN MAG TERM 18-34AWG QC 0.187
2-1601035-2
NRNDTE Connectivity AMP Connectors
CONN MAG TERM 18-34AWG QC 0.187
Description
General part information
2-1601035-2

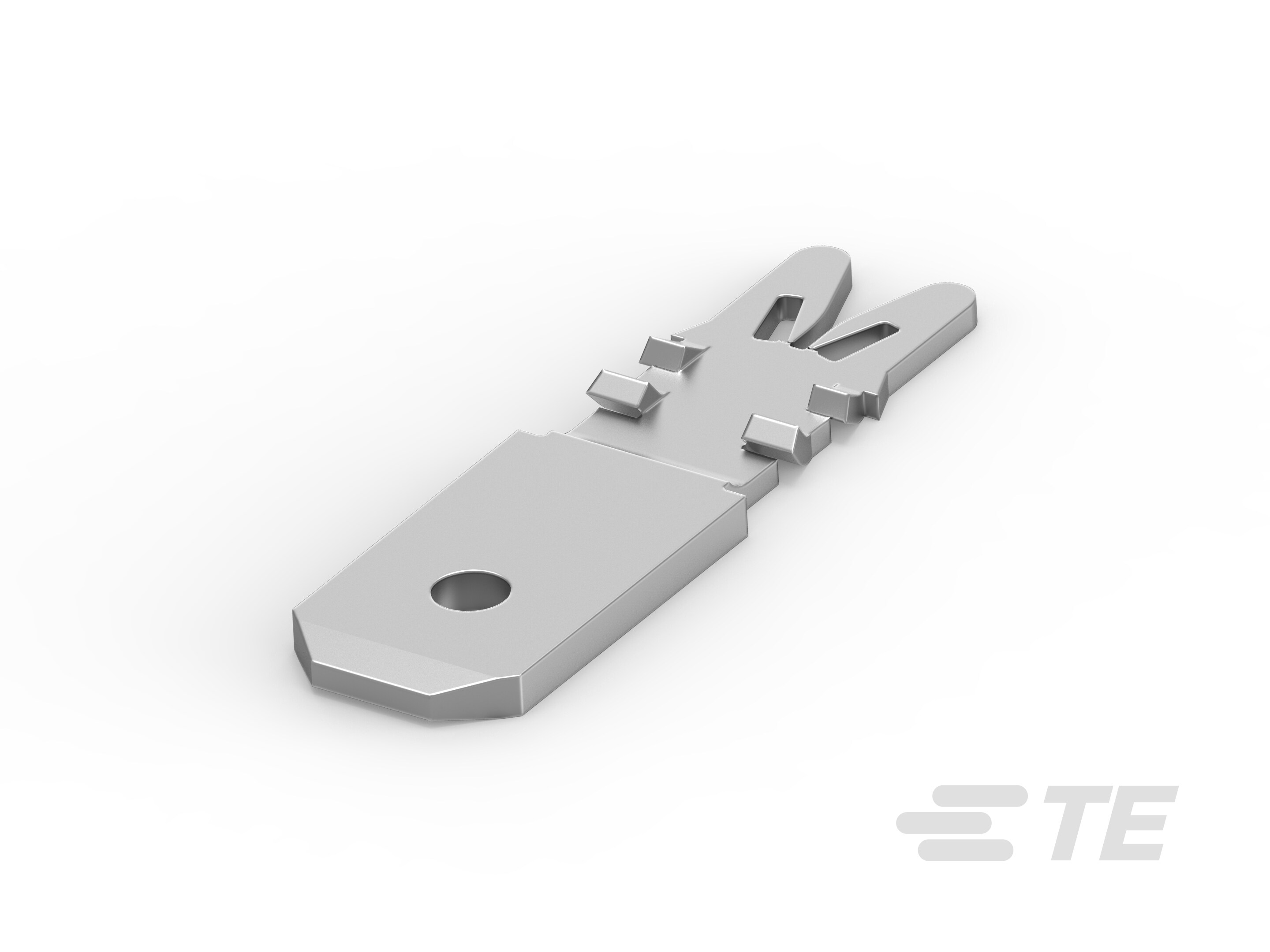

Tab, 4.75 mm [.187 in] Tab Width, .16 – 1.02 mm Magnet Wire, 34 – 18 AWG Magnet Wire, Insulation Displacement (IDC), SIAMEZE, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1601035-2 |
|---|---|
| Features | QC .187 |
| Style | Siameze |
| Terminal Type | IDC Terminal |
| Termination | Quick Connect |
| Wire Gauge (AWG) (Max) | 34 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Standard Range SIAMEZE* Insulation Displacement Terminals
Standard Range SIAMEZE Insulation Displacement Terminals
1-1773702-7 _IDC_Magnet_Wire
ENG_CD_1601425_B.pdf
Magnet Wire Terminals & Splices
Datasheet
SIAMEZE Standard and Fine Range Terminals
ENG_CD_1601035_B4.pdf
1654742_HOUSEHOLD_APPLIANCES_RAST5
2-1601035-2 | Datasheet
