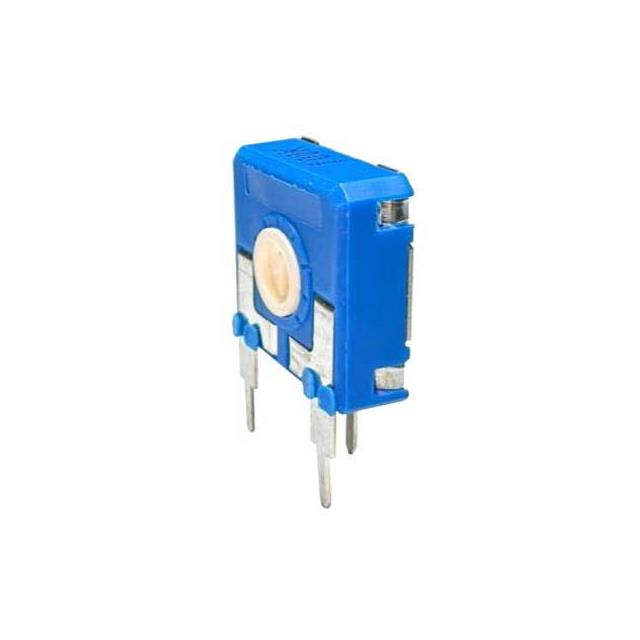

14TR09EA103CP
ActiveCTS Electrocomponents
TRIMMER 10KOHM 0.25W PC PIN SIDE
14TR09EA103CP
ActiveCTS Electrocomponents
TRIMMER 10KOHM 0.25W PC PIN SIDE
Description
General part information
14TR09EA103CP
10 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | 14TR09EA103CP |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 turns |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 10 kOhm |
| Resistive Material | Carbon |
| Size / Dimension Length | 0.551 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 0.551 in |
| Temperature Coefficient (Highest) | 200 ppm/°C |
| Temperature Coefficient (Lowest) | -300 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
