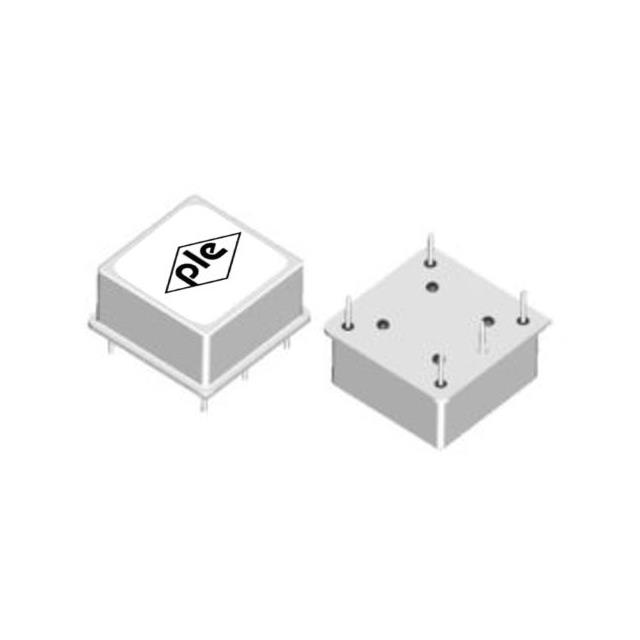

OLA5006-100.0M
ActivePletronics, Inc
XTAL OSC OCXO 100.0M SNWV
OLA5006-100.0M
ActivePletronics, Inc
XTAL OSC OCXO 100.0M SNWV
Description
General part information
OLA5006-100.0M
100 MHz OCXO Sine Wave Oscillator 5V Low-G Sensitivity 6-DIP (0.750", 19.05mm), 5 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | OLA5006-100.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 950 mA |
| Frequency | 100 MHz |
| Frequency Stability | 200 ppb |
| Function | Low-G Sensitivity |
| Height - Seated (Max) | 12.7 mm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Sine Wave |
| Package Features | 5 Leads |
| Package Length | 0.75 in |
| Package Name | 6-DIP |
| Package Width | 19.05 mm |
| Size / Dimension Length | 1.015 in |
| Size / Dimension Width | 1.015 in |
| Type | OCXO |
| Voltage - Supply | 5 VDC |
