EGJ.1B.304.CLA
ActiveLEMO

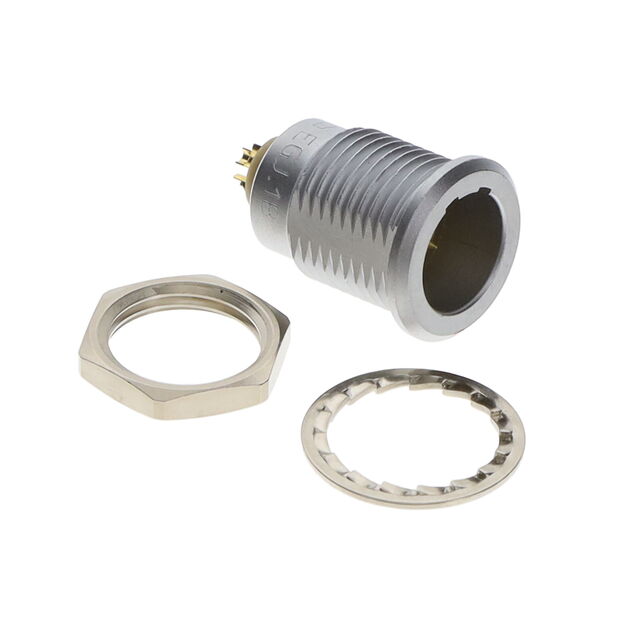

CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGJ.1B.304.CLA
ActiveLEMO
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGJ.1B.304.CLA | EGJ.1B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Insert Shell |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 10 A | 2 - 12 A |
| Fastening Type | Push-Pull | Push-Pull, Detent Lock |
| Housing Color | - | Black |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Note | - | Contacts Not Included; Insert Not Included |
| Number of Positions | 4 | 4 - 14 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | J | J |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome, Anodized |
| Shell Material | Brass | Brass, Aluminum Alloy |
| Shell Size - Insert | 304 | 303 - 731 |
| Shielding | Shielded | Shielded |
| Termination | - | Crimp, Solder |
EGJ.1B Series
CONN RCPT MALE 14P GOLD SLDR CUP
| Part | Shell Size - Insert | Material Flammability Rating | Orientation | Contact Finish - Mating | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shielding | Color | Current Rating (Amps) | Connector Type | Primary Material | Shell Material | Fastening Type | Shell Finish | Contact Material | Number of Positions | Insert Material | Ingress Protection | Termination | Mounting Type | Note | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGJ.1B.314.CLA | 314 | UL94 V-0 | J | Gold | Bulkhead - Rear Side Nut | -55 °C | 250 °C | 1 µm | 39.4 µin | Shielded | Silver | 2 A | Male Pins, Receptacle | Metal | Brass | Push-Pull | Chrome | Brass | 14 | Polyetheretherketone (PEEK) | IP50 | ||||
LEMO EGJ.1B.305.CYC | 305 | UL94 V-0 | J | Gold | Bulkhead - Rear Side Nut | -55 °C | 250 °C | 1 µm | 39.4 µin | Shielded | Silver | 9 A | Male Pins, Receptacle | Metal | Brass | Push-Pull | Chrome | Brass | Polyetheretherketone (PEEK) | IP50 | Crimp | ||||
LEMO EGJ.1B.304.CLA | 304 | UL94 V-0 | J | Gold | Bulkhead - Rear Side Nut | -55 °C | 250 °C | 1 µm | 39.4 µin | Shielded | Silver | 10 A | Male Pins, Receptacle | Metal | Brass | Push-Pull | Chrome | Brass | 4 | Polyetheretherketone (PEEK) | IP50 | ||||
LEMO EGJ.1B.303.CLD | 303 | UL94 V-0 | J | Gold | Bulkhead - Rear Side Nut | -55 °C | 250 °C | 1 µm | 39.4 µin | Shielded | Silver | 12 A | Male Pins, Receptacle | Metal | Brass | Push-Pull | Chrome | Brass | Polyetheretherketone (PEEK) | IP50 | Solder | Panel Mount, Through Hole | |||
LEMO EGJ.1B.308.CLA | 308 | UL94 V-0 | J | Gold | Bulkhead - Rear Side Nut | -55 °C | 250 °C | 1 µm | 39.4 µin | Shielded | Silver | 5 A | Male Pins, Receptacle | Metal | Brass | Push-Pull | Chrome | Brass | 8 | Polyetheretherketone (PEEK) | IP50 | ||||
LEMO EGJ.1B.200.LC | J | Bulkhead - Rear Side Nut | -55 °C | 250 °C | Shielded | Insert Shell | Aluminum Alloy | Detent Lock, Push-Pull | Anodized | IP50 | Contacts Not Included; Insert Not Included | Black | |||||||||||||
LEMO EGJ.1B.731.CJA | 731 | UL94 V-0 | J | Gold | Bulkhead - Rear Side Nut | -55 °C | 250 °C | 1 µm | 39.4 µin | Shielded | Silver | 12 A | Male Pins, Receptacle | Metal | Brass | Push-Pull | Chrome | Brass | Polyetheretherketone (PEEK) | IP50 | |||||
LEMO EGJ.1B.308.CYC | 308 | UL94 V-0 | J | Gold | Bulkhead - Rear Side Nut | -55 °C | 250 °C | 1 µm | 39.4 µin | Shielded | Silver | 5 A | Male Pins, Receptacle | Metal | Brass | Push-Pull | Chrome | Brass | 8 | Polyetheretherketone (PEEK) | IP50 | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.46 | |
Description
General part information
EGJ.1B Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
