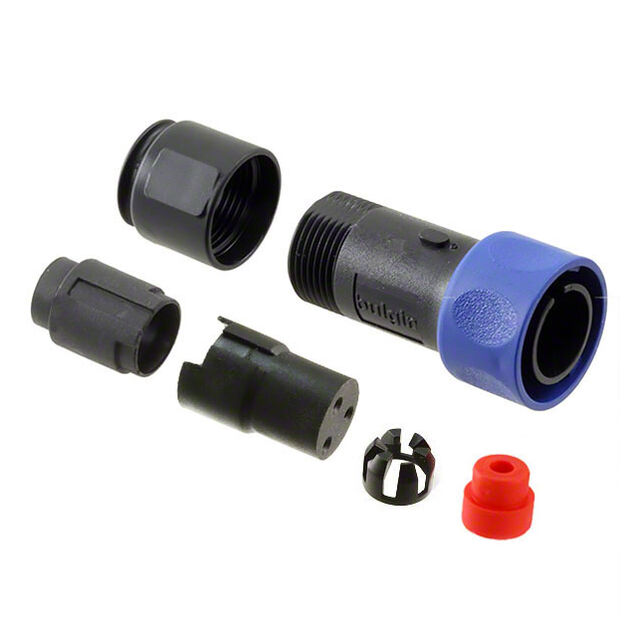

Specification	PXP4010/03S/4550

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp
Fastening Type	Bayonet Lock
Features	Backshell, Coupling Nut, UV Resistant
Housing Color	Blue, Black
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP66
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Position Types	Power
Primary Material	Plastic
Shell Material	Halogen Free, Polycarbonate/Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Type	For Female Sockets

PXP4010 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Housing Color	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Primary Material	Contact Type	Note	Mounting Feature	Mounting Type	Type	Includes Total Count	Includes	Material Flammability Rating	Fastening Type	Features	Number of Positions	Position Types	Shell Material	Contact Shape	Contact Finish - Mating	Contact Material	Termination	Current Rating	Color	Voltage Rating	Voltage Rating (Type)
BULGIN LIMITED PXP4013/04S	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount Through Hole	For Female Sockets	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	4	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/12S	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount	For Female Sockets	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	12	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/08S	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount	For Female Sockets	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	8	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/12P	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount	For Male Pins	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	12	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/04P	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount Through Hole	For Male Pins	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	4	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/10P/PC	120 °C	-40 °C	Unshielded		Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Male Pins Receptacle	Plastic			Bulkhead Front Side Nut	Panel Mount Through Hole				UL94 V-0	Bayonet Lock	UV Resistant	10	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)		Gold	Copper Alloy	Solder	3 A	Black	600 V	DC
BULGIN LIMITED PXP4013/03P	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount	For Male Pins	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	3	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/12P/PC	120 °C	-40 °C	Unshielded		Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Male Pins Receptacle	Plastic			Bulkhead Front Side Nut	Panel Mount Through Hole				UL94 V-0	Bayonet Lock	UV Resistant	12	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)		Gold	Copper Alloy	Solder	3 A	Black	600 V	DC
BULGIN LIMITED PXP4013/12S/PC	120 °C	-40 °C	Unshielded		Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Female Sockets Receptacle	Plastic			Bulkhead Front Side Nut	Panel Mount Through Hole				UL94 V-0	Bayonet Lock	UV Resistant	12	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)		Gold	Copper Alloy	Solder	3 A	Black	600 V	DC
BULGIN LIMITED PXP4013/10S/PC	120 °C	-40 °C	Unshielded		Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Female Sockets Receptacle	Plastic			Bulkhead Front Side Nut	Panel Mount Through Hole				UL94 V-0	Bayonet Lock	UV Resistant	10	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)		Gold	Copper Alloy	Solder	3 A	Black	600 V	DC
