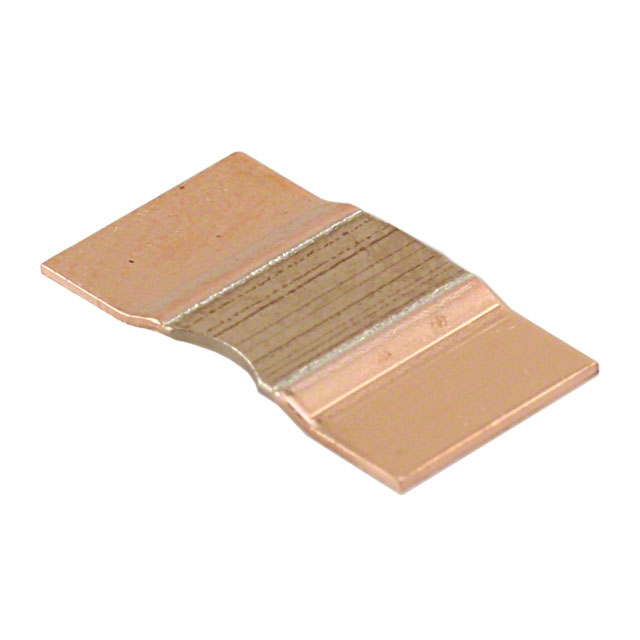

WSLP59312L000JEA
ActiveVishay Dale
RES 0.002 OHM 5% 8W 5931
WSLP59312L000JEA
ActiveVishay Dale
RES 0.002 OHM 5% 8W 5931
Description
General part information
WSLP59312L000JEA
2 mOhms ±5% 8W Chip Resistor Nonstandard Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | WSLP59312L000JEA |
|---|---|
| Composition | Metal Element |
| Features | Moisture Resistant, Anti-Sulfur, Current Sense, Automotive AEC-Q200, Pulse Withstanding |
| Height - Seated (Max) | 0.02 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Nonstandard |
| Package Name | 5931 |
| Power (Watts) | 8 W |
| Ratings | AEC-Q200 |
| Resistance | 2 mOhms |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.305 in |
| Temperature Coefficient | 75 ppm/¯C |
| Tolerance | 5 % |
