M3YYK-4018J

Active

IDC CABLE - MPD40K/MC40G/MPD40K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet 3365 Series Datasheet +2

M3YYK-4018J

Active

IDC CABLE - MPD40K/MC40G/MPD40K

Deep-Dive with AI

Documents3365 Series Datasheet 3365 Series Datasheet +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.35
		10	$ 35.87
		25	$ 32.55
		50	$ 30.30
		100	$ 28.27
		250	$ 25.88

Description

General part information

M3YYK Series

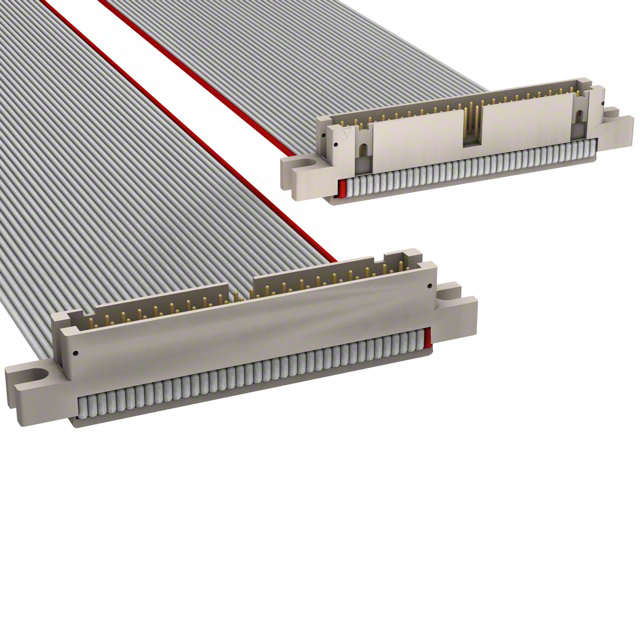

40 Position Cable Assembly Rectangular Plug to Plug 1.50' (457.20mm)

Documents

Technical documentation and resources

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3YYK-4018J	M3YYK Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Plug to Plug	Plug to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief, Flange	Polarizing Key, Strain Relief, Flange
Length	-	152.4 - 508 mm
Length	-	6 "
Length	-	0.5 '
Length	-	1.67 ft
Length [x]	457.2 mm	1.02 - 914.4 mm
Length [x]	1.5 ft	1.5 - 3.34 ft
Number of Positions	40	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3YYK Series

IDC CABLE - MPD64K/MC64G/MPD64K

Part	Pitch - Connector	Pitch - Connector	Number of Positions	Cable Termination	Pitch - Cable	Pitch - Cable	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Shielding	Length [x]	Length [x]	Features	Color	Number of Positions	Length	Length	Length	Length
3M M3YYK-6418J	0.1 in	2.54 mm	64	IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded	457.2 mm	1.5 ft	Flange, Polarizing Key, Strain Relief
3M M3YYK-1418J	0.1 in	2.54 mm	14	IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded	457.2 mm	1.5 ft	Flange, Polarizing Key, Strain Relief
3M M3YYK-1606R	0.1 in	2.54 mm		IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded			Flange, Polarizing Key, Strain Relief	Multiple, Ribbon	16	152.4 mm	6 "	0.5 '
3M M3YYK-2620K	0.1 in	2.54 mm	26	IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded			Flange, Polarizing Key, Strain Relief	Multiple, Twisted Pair (Flat)		508 mm			1.67 ft
3M M3YYK-6036R	0.1 in	2.54 mm	60	IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded	914.4 mm	3 ft	Flange, Polarizing Key, Strain Relief	Multiple, Ribbon
3M M3YYK-5036R	0.1 in	2.54 mm	50	IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded	914.4 mm	3 ft	Flange, Polarizing Key, Strain Relief	Multiple, Ribbon
3M M3YYK-1440K	0.1 in	2.54 mm	14	IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded	1.02 m	3.34 ft	Flange, Polarizing Key, Strain Relief	Multiple, Twisted Pair (Flat)
3M M3YYK-2618R	0.1 in	2.54 mm	26	IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded	457.2 mm	1.5 ft	Flange, Polarizing Key, Strain Relief	Multiple, Ribbon
3M M3YYK-3006R	0.1 in	2.54 mm	30	IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded			Flange, Polarizing Key, Strain Relief	Multiple, Ribbon		152.4 mm	6 "	0.5 '
3M M3YYK-1618R	0.1 in	2.54 mm		IDC	0.05 "	1.27 mm	Plug to Plug	0.76 Ám	30 Áin	Gold	2	Unshielded	457.2 mm	1.5 ft	Flange, Polarizing Key, Strain Relief	Multiple, Ribbon	16
