F9473PC-4"X60YD

Active

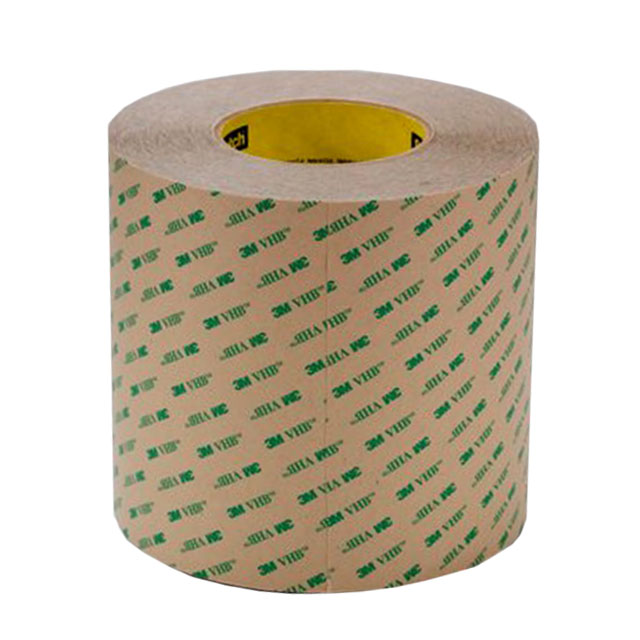

TAPE ADHSV TRNSFR CLR 4"X60YDS

Search across all available documentation for this part.

Active

TAPE ADHSV TRNSFR CLR 4"X60YDS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	F9473PC-4"X60YD	F9473PC Series

Adhesive	Acrylic, 100MP	Acrylic, 100MP
Backing, Carrier	Polycoated Kraft Liner	Polycoated Kraft Liner
Color	Clear	Clear
Length	60 yds	60 yds
Length	55 m	55 m
Length	180 ft	180 ft
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C	16 - 60 °F
Tape Type	Adhesive Transfer	Adhesive Transfer
Thickness	0.356 mm	0.356 mm
Thickness	0.014 in	0.014 in
Thickness	14 mils	14 mils
Thickness - Adhesive	0.254 mm	0.254 mm
Thickness - Adhesive	10 mils	10 mils
Thickness - Adhesive	0.01 "	0.01 "
Thickness - Backing, Carrier	0.102 mm	0.102 mm
Thickness - Backing, Carrier	4 mils	4 mils
Thickness - Backing, Carrier	0.004 in	0.004 in
Usage	High Temperature Applications, Attachment	High Temperature Applications, Attachment
Width	-	0.5 in
Width	-	12.7 mm
Width	-	0.5 in
Width [x]	4 "	4 "
Width [x]	101.6 mm	101.6 mm

TAPE ADHSV TRNSFR CLR 4"X60YDS

Part	Shelf Life Start	Shelf Life	Thickness	Thickness	Thickness	Width [x]	Width [x]	Usage	Length	Length	Length	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Color	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Tape Type	Width	Width	Width
3M F9473PC-4"X60YD	Date of Manufacture	24 Months	0.356 mm	0.014 in	14 mils	4 "	101.6 mm	Attachment, High Temperature Applications	60 yds	55 m	180 ft	0.254 mm	10 mils	0.01 "	Clear	Acrylic, 100MP	0.102 mm	4 mils	0.004 in	16 °C, 60 °F	27 °C, 80 °F	Polycoated Kraft Liner	Adhesive Transfer
3M F9473PC-1/2"X60YD	Date of Manufacture	24 Months	0.356 mm	0.014 in	14 mils			Attachment, High Temperature Applications	60 yds	55 m	180 ft	0.254 mm	10 mils	0.01 "	Clear	Acrylic, 100MP	0.102 mm	4 mils	0.004 in	16 °C, 60 °F	27 °C, 80 °F	Polycoated Kraft Liner	Adhesive Transfer	0.5 in	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adhesive Transfer Tape Acrylic, 100MP Adhesive Clear 4.00" (101.60mm) X 180' (55.0m) 60 yds
